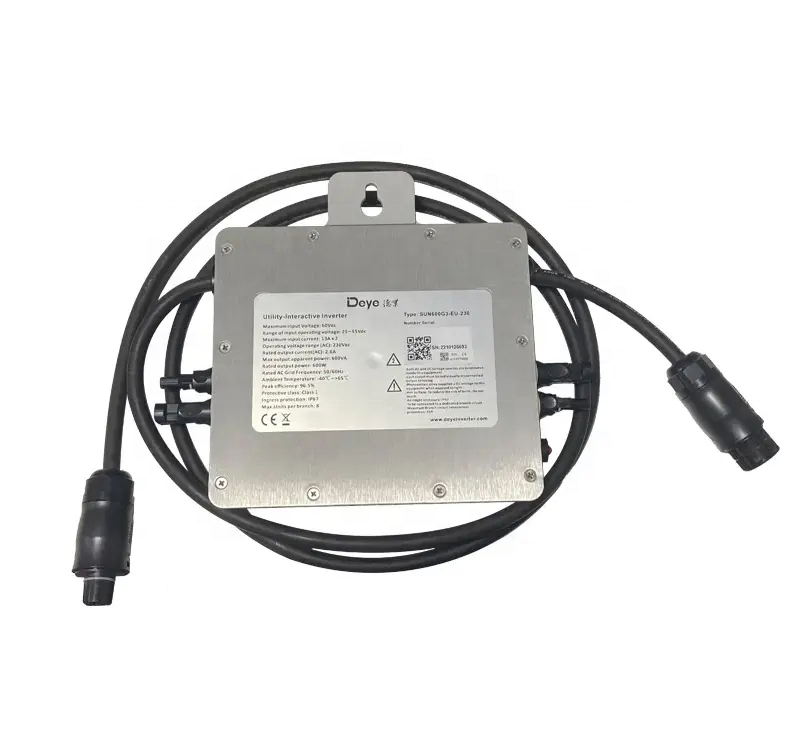

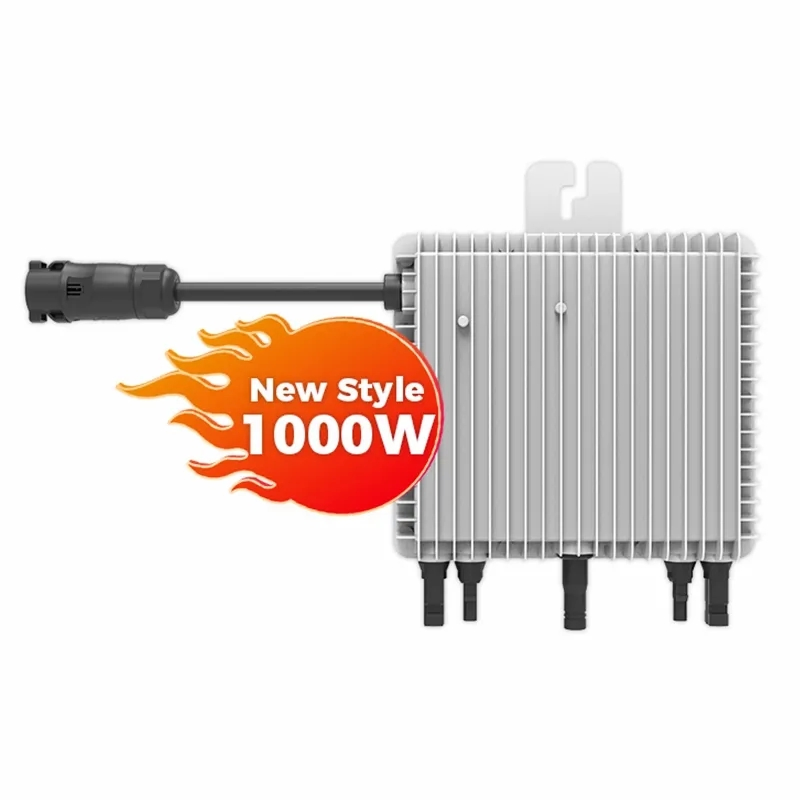

📋 Basic Info.
Model NO.
SUN-M100G3-EU-Q0
Nature of Source
Active Inverter
Certification
SAA, CE, ROHS, ISO9001, CCC
Circuit Topologies
Full-Bridge Type
Wave String
Sine Wave Inverter
Output Frequency
50/60(Hz)
Output Voltage
110V/220V(V)
📦 Packaging & Delivery

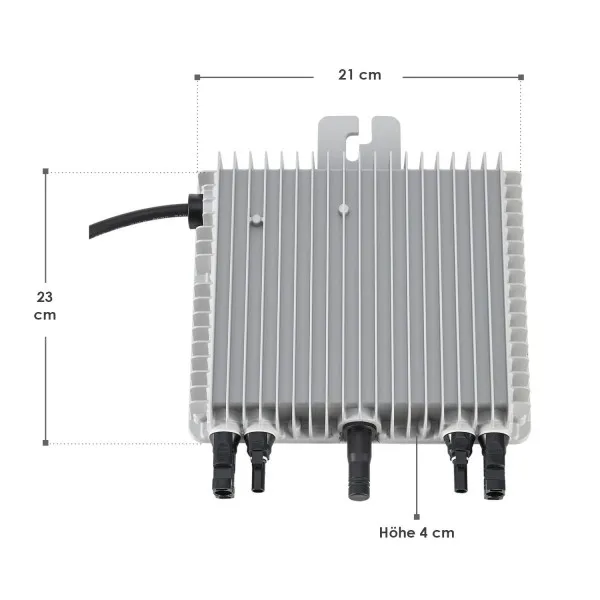

Package Size
21.20cm * 19.00cm * 4.00cm
📑 Product Description
🖊 Specification
| Model |
SUN-M60G3-EU-Q0 |
SUN-M80G3-EU-Q0 |
SUN-M100G3-EU-Q0 |
| Input Data (DC) |
| Recommended Input Power | 210-420W (2 Pcs) | 210-500W (2 Pcs) | 210-600W (2 Pcs) |
| Max Input DC Voltage | 60V |
| MPPT Voltage Range | 25-55V |
| Full Load DC Voltage | 24.5-55V | 33-55V | 40-55V |
| Max Short Circuit Current | 2×19.5A |
| Output Data (AC) |
| Rated Output Power | 600W | 800W | 1000W |
| Rated Output Current | 2.6A | 3.5A | 4.4A |
| Nominal Voltage | 230V / 0.85Un-1.1Un |
| Efficiency (Peak) | 96.5% |
| Enclosure Rating | IP67 |
| Warranty | 10 Years |

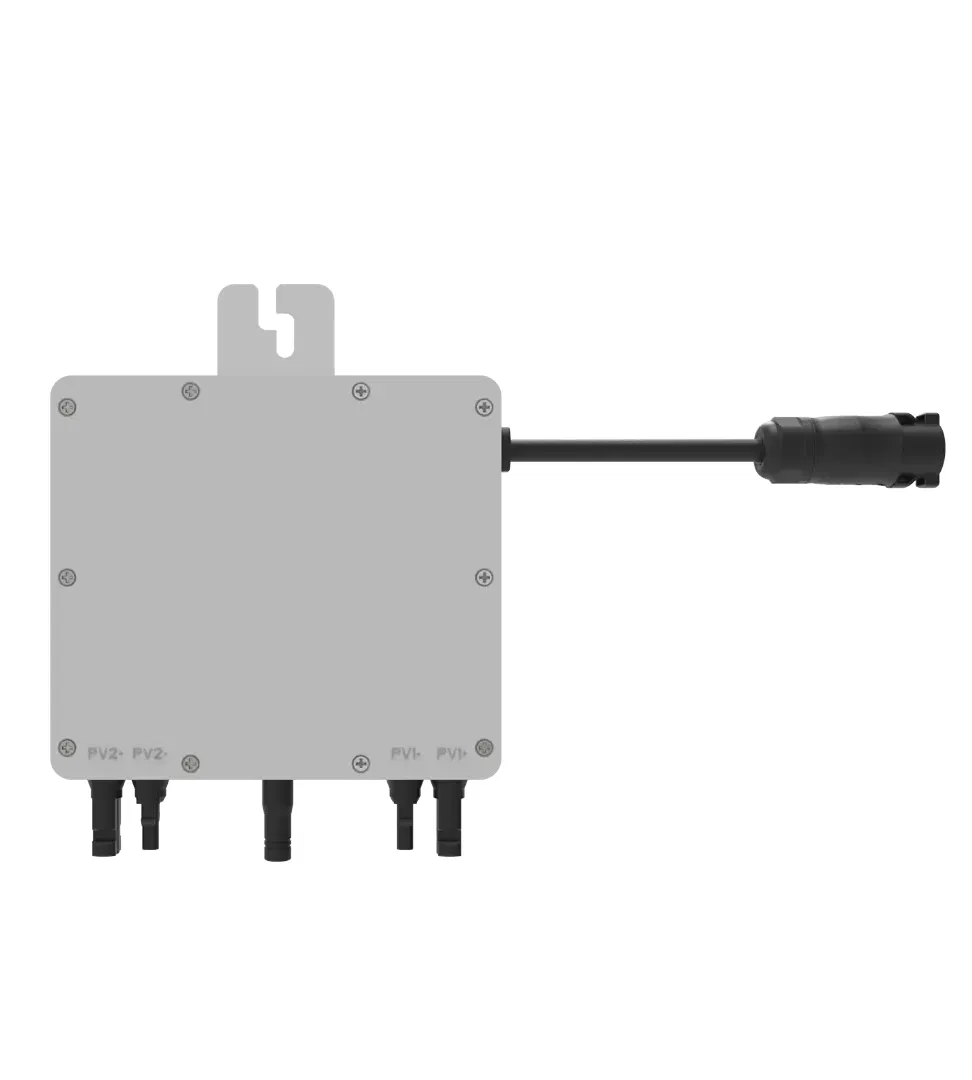

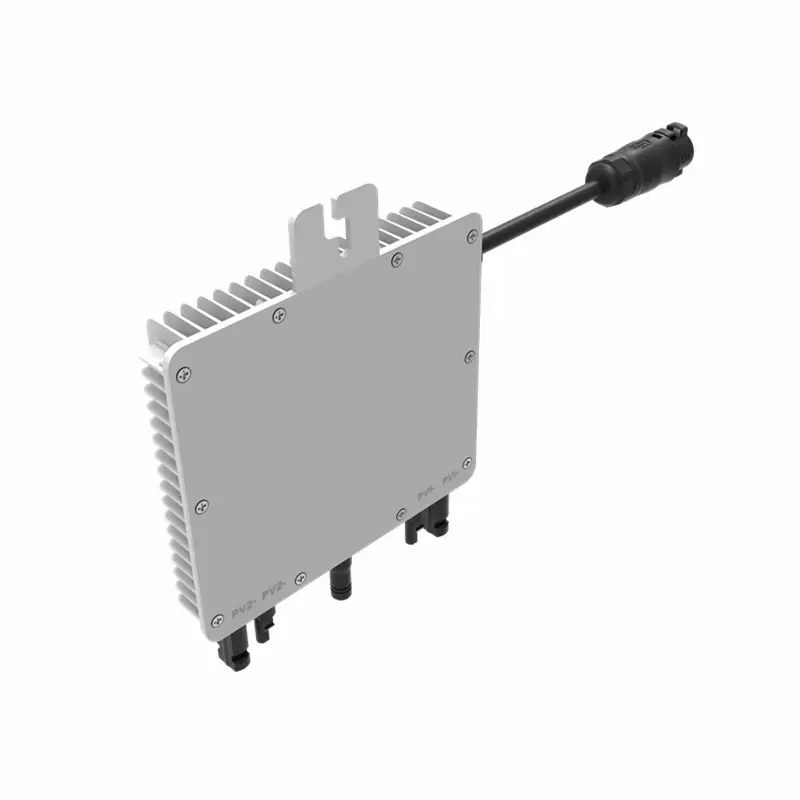

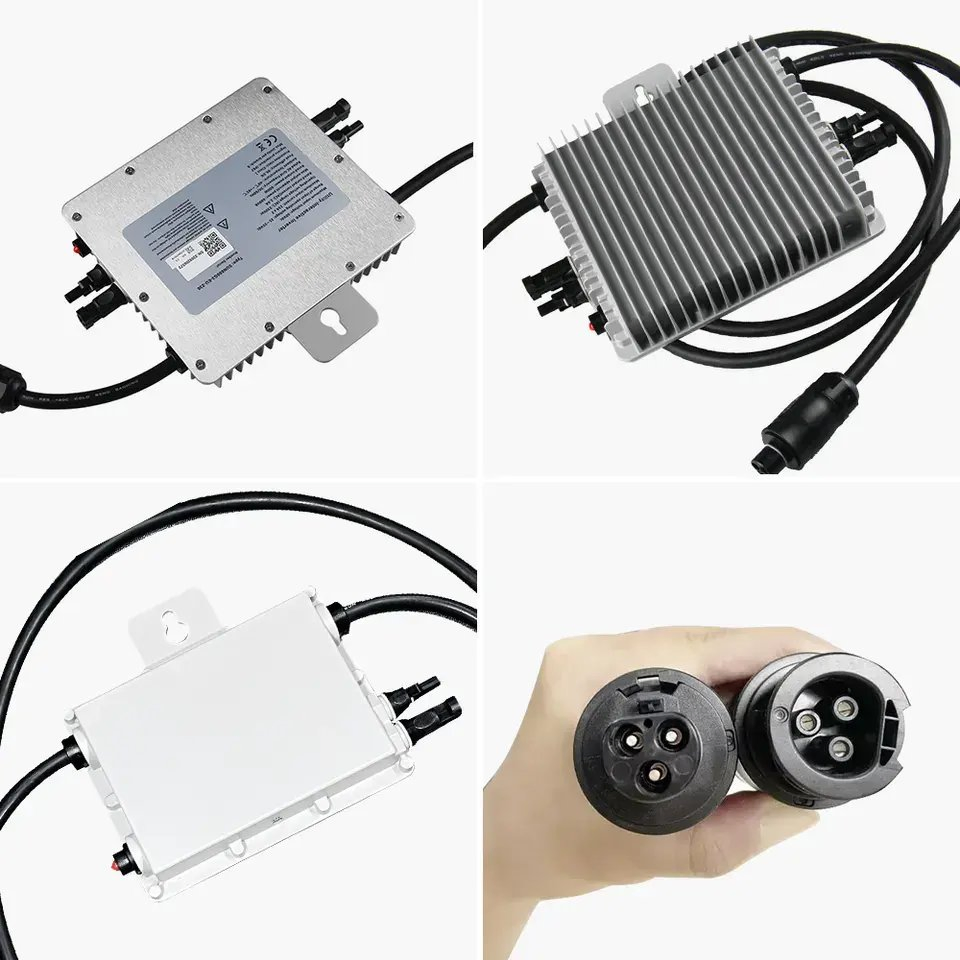

🔍 Products Details
⭐ Why Choose Our Solar Inverters?
✔ Installed in more than 60 countries including Australia, Brazil, India, UK, Germany, Italy, and more.
✔ Best choice for AC Storage Hybrid Solutions and String Inverters.
✔ Compatible with various PV Solar systems.
✔ Equipped with standard WiFi communication for easy monitoring.
✔ 25-year data storage capability via internal SD Card.

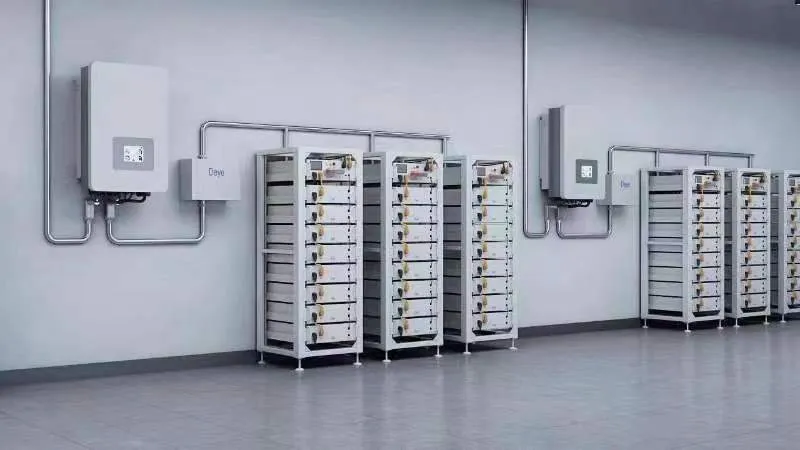

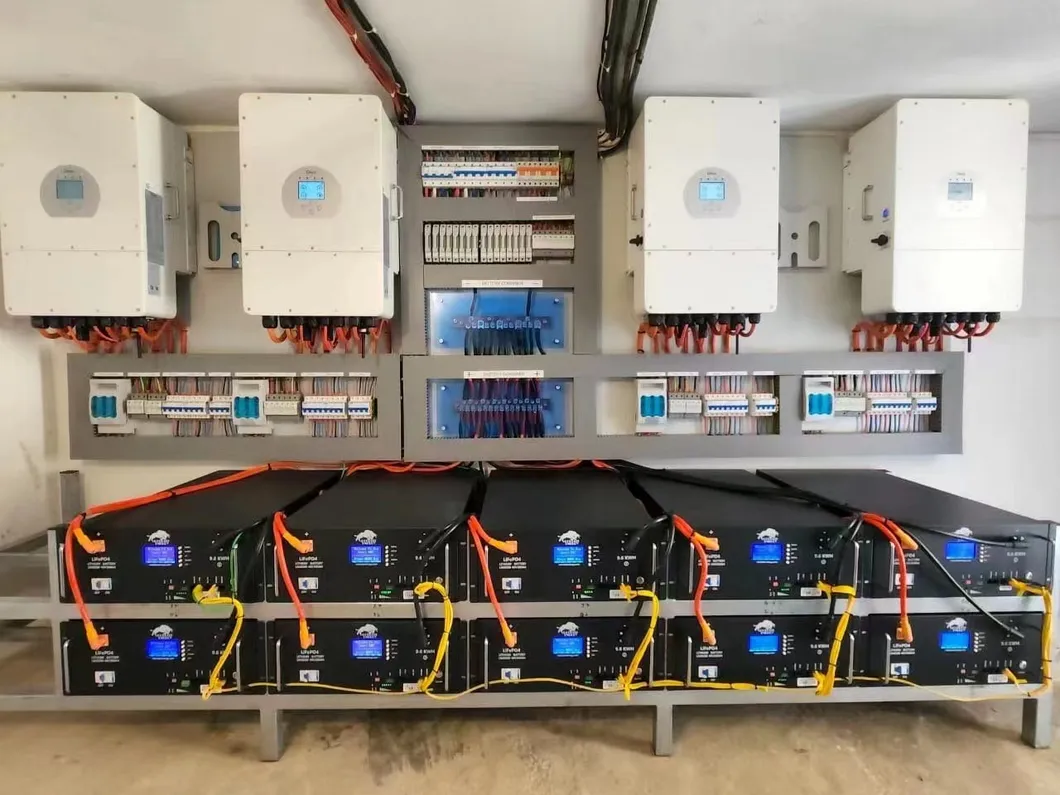

🏗 Project Case

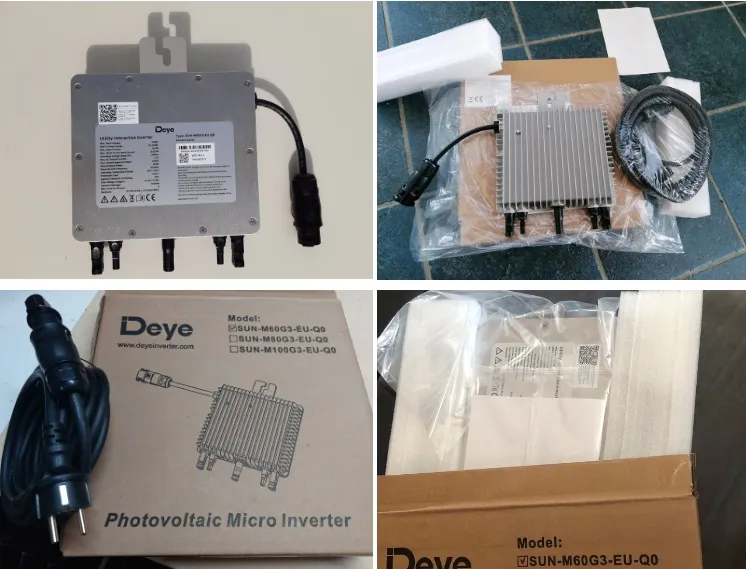

🚚 Package and Delivery
❓ Frequently Asked Questions
What is the maximum input DC voltage for these micro inverters?
The maximum input DC voltage is 60V, with an MPPT voltage range between 25V and 55V.
Are these inverters suitable for outdoor installation?
Yes, they have an IP67 enclosure environmental rating, making them highly resistant to dust and water.
How long is the warranty period?
These solar micro inverters come with a standard 10-year warranty.
Do the inverters support remote monitoring?
Yes, they are equipped with standard WiFi communication for convenient system monitoring.
What is the peak efficiency of the SUN-M100G3 series?
The peak inverter efficiency reaches up to 96.5% with a static MPPT efficiency of 99%.

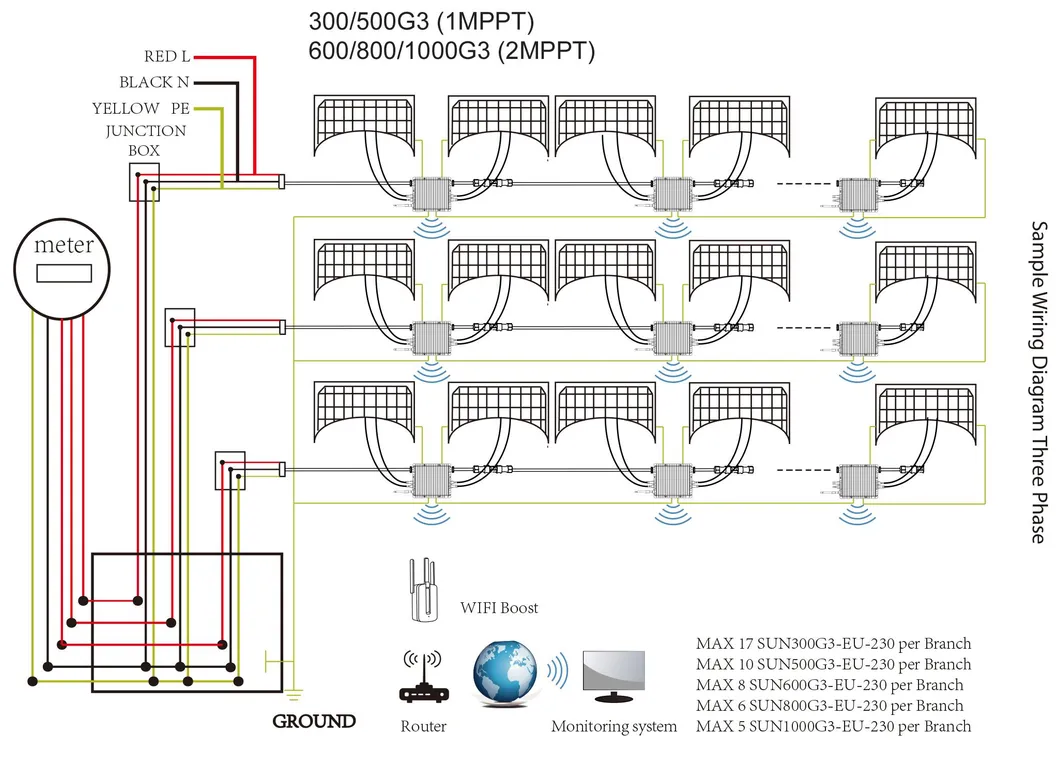

How many units can be connected per branch?
Depending on the model, you can connect up to 8 units (600W), 6 units (800W), or 5 units (1000W) per branch.
