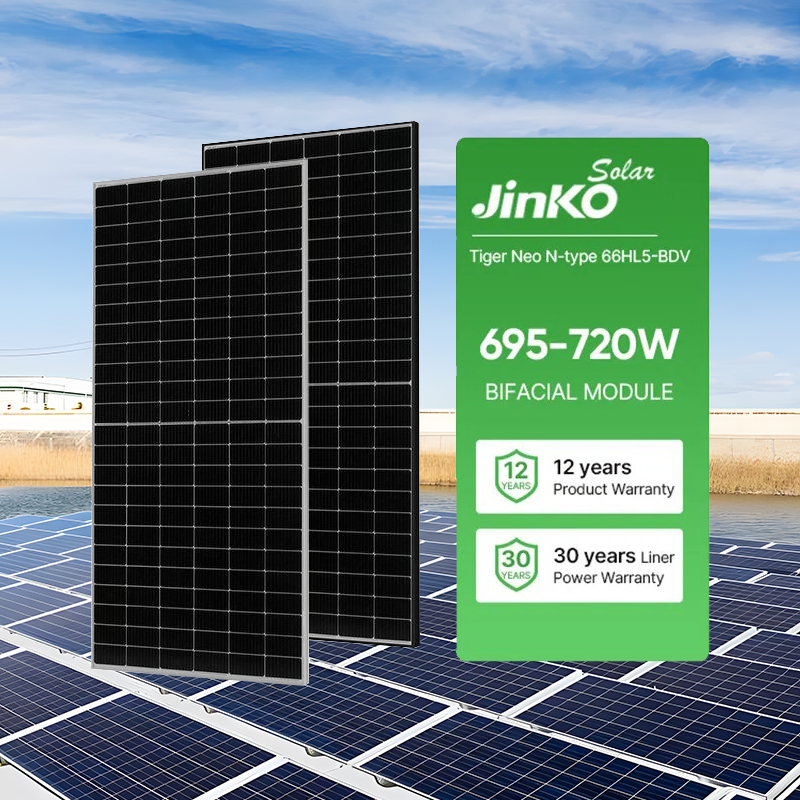

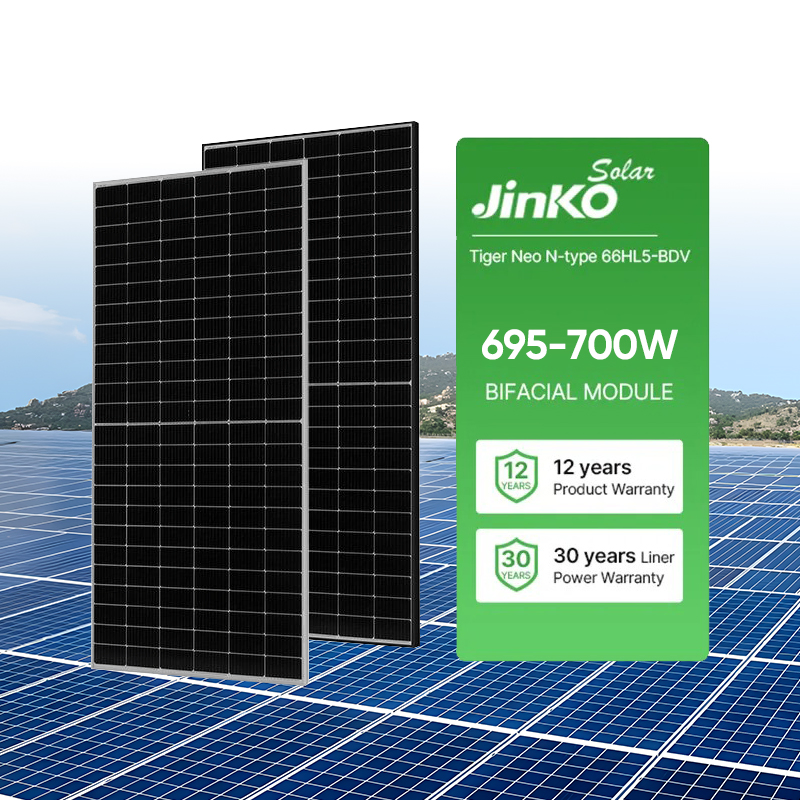

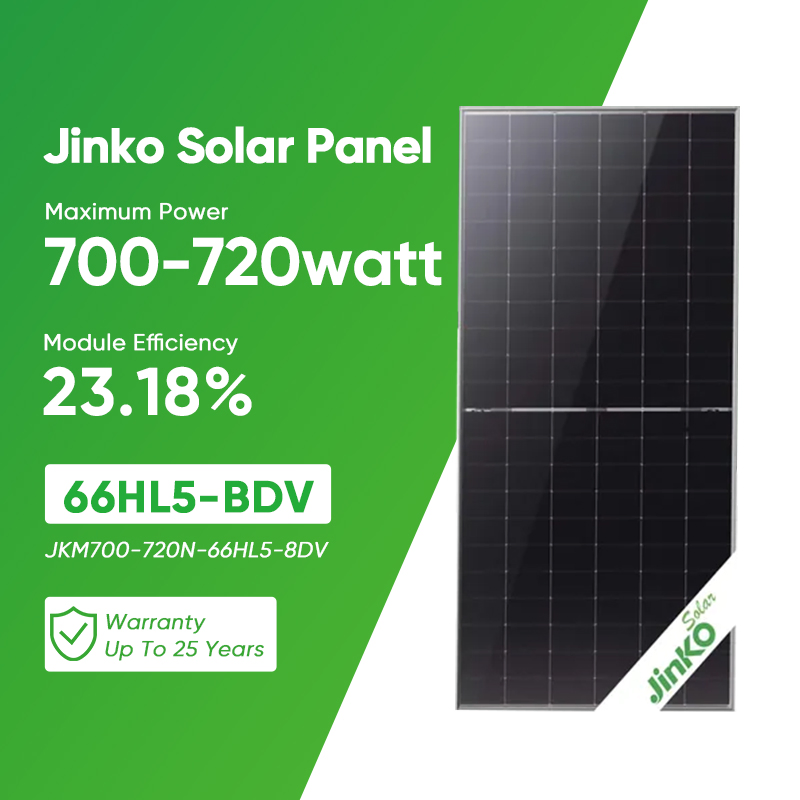

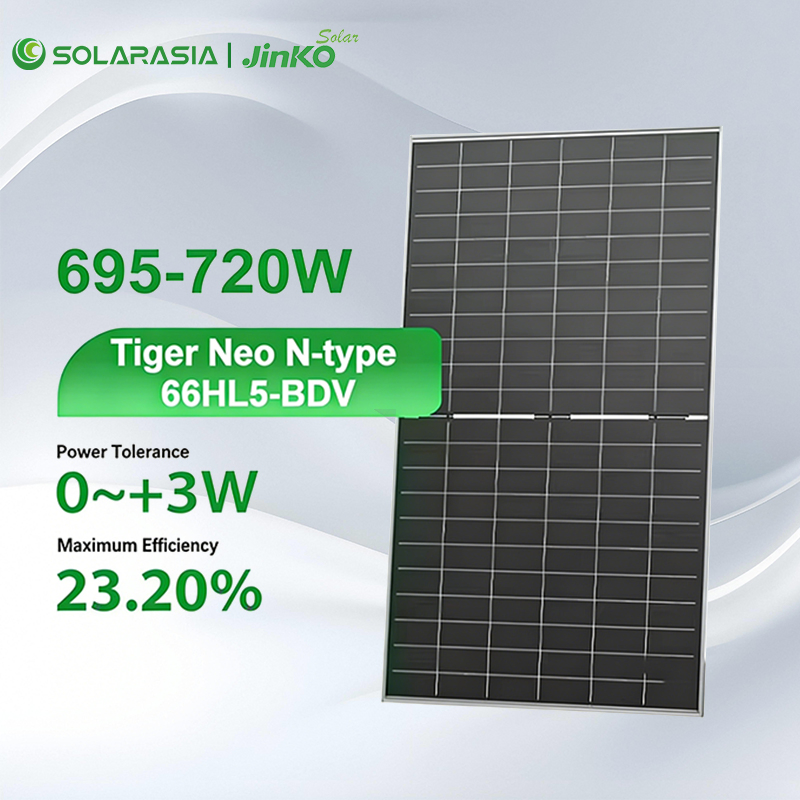

Jinko 700W 66hl5-Bdv Solar Panel 700W 156 Cell Solar Panel Topcon N Type Bifacial Photovoltaic Panel Monocrystalline 700W 710W 720W PV Module for Sale

Customization:	Available
After-sales Service:	Yes
Warranty:	30years

📋

Basic Information

Model NO.

66HL5-BDV

Number of Cells

156

Application

Industrial

Condition

New

Certification

ISO, CE

Material

Monocrystalline Silicon

Cell Type

N Type Mono-Crystalline

Weight

34.6kg

Front Glass

2.0mm, Anti-Reflection Coating

Back Glass

2.0mm, Heat Strengthened Glass

Junction Box

IP68 Rated

Output Cables

TUV 1×4.0mm2

HS Code

8541402000

Specification

2465*1134*30mm

⚙️

Product Description

📊

Product Parameters

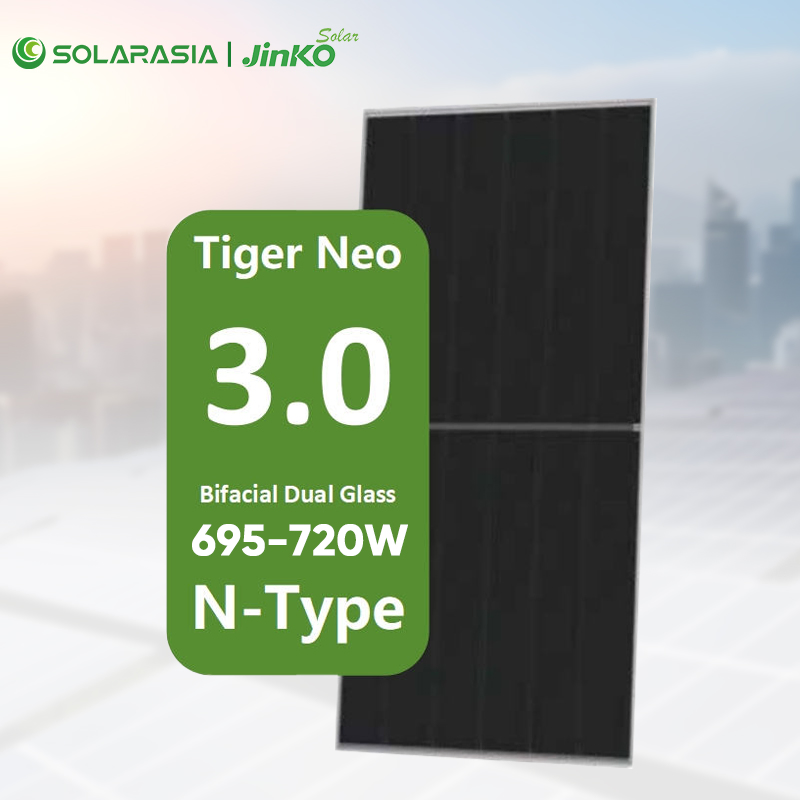

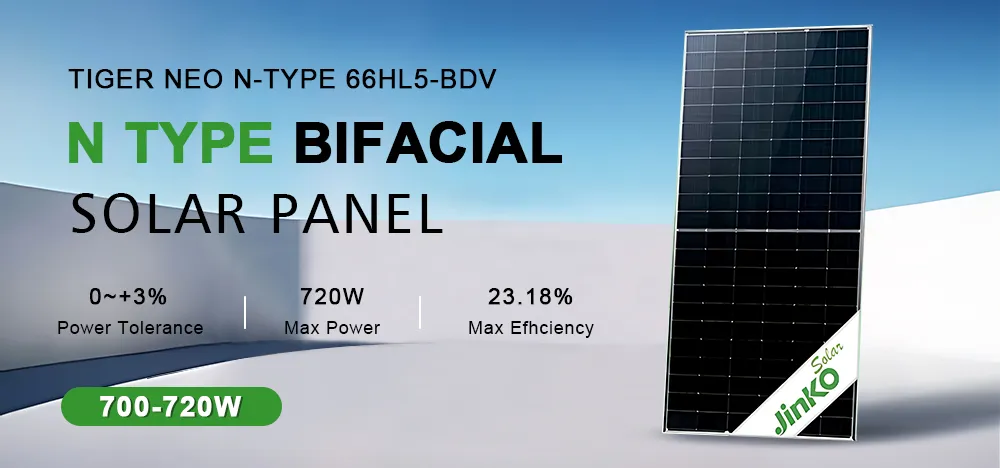

TIGER Neo BIFACIAL MODULE WITH DUAL GLASS JKM700-720N-66HL5-BDV
Specifications (STC)	695W	700W	705W	710W	715W	720W
Maximum Power-Pmax [Wp]	695	700	705	710	715	720
Maximum Power Voltage-Vmp [V]	40.29	40.42	40.53	40.56	40.77	40.89
Maximum Power Current-Imp [A]	17.25	17.32	17.40	17.47	17.54	17.61
Open-circuit Voltage-Voc [V]	48.24	48.40	45.56	48.73	48.88	49.04
Short-circuit Current-Isc [A]	18.33	18.40	18.46	18.53	18.60	18.67
Module Efficiency STC [%]	22.37	22.54	22.70	22.86	23.02	23.18

📜

Certifications

📦

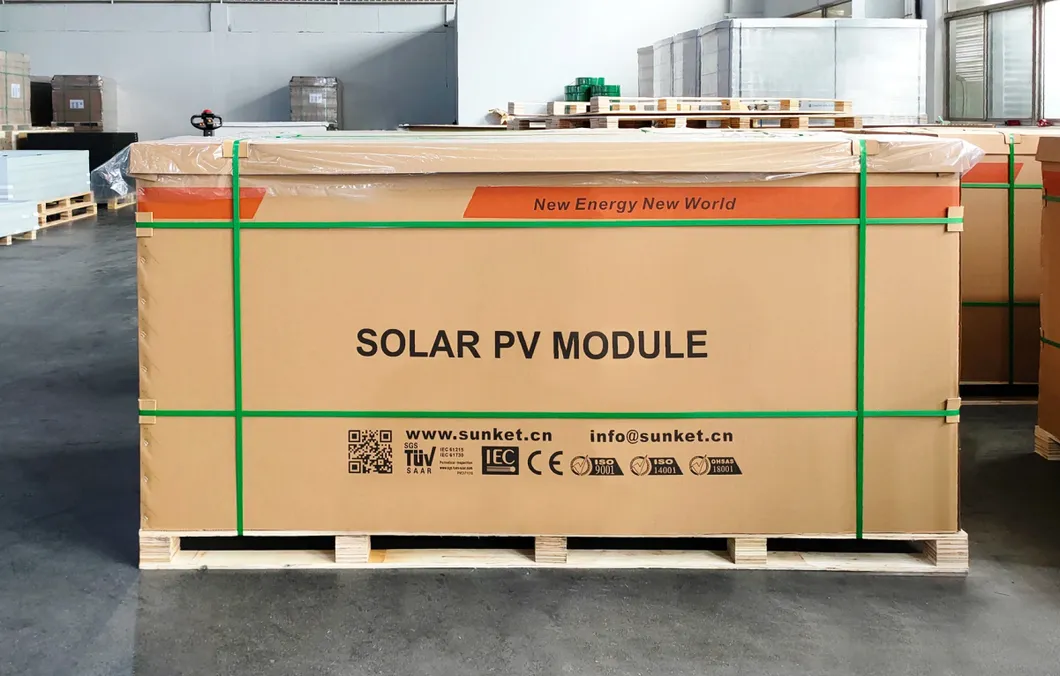

Packaging & Shipping

🏗️

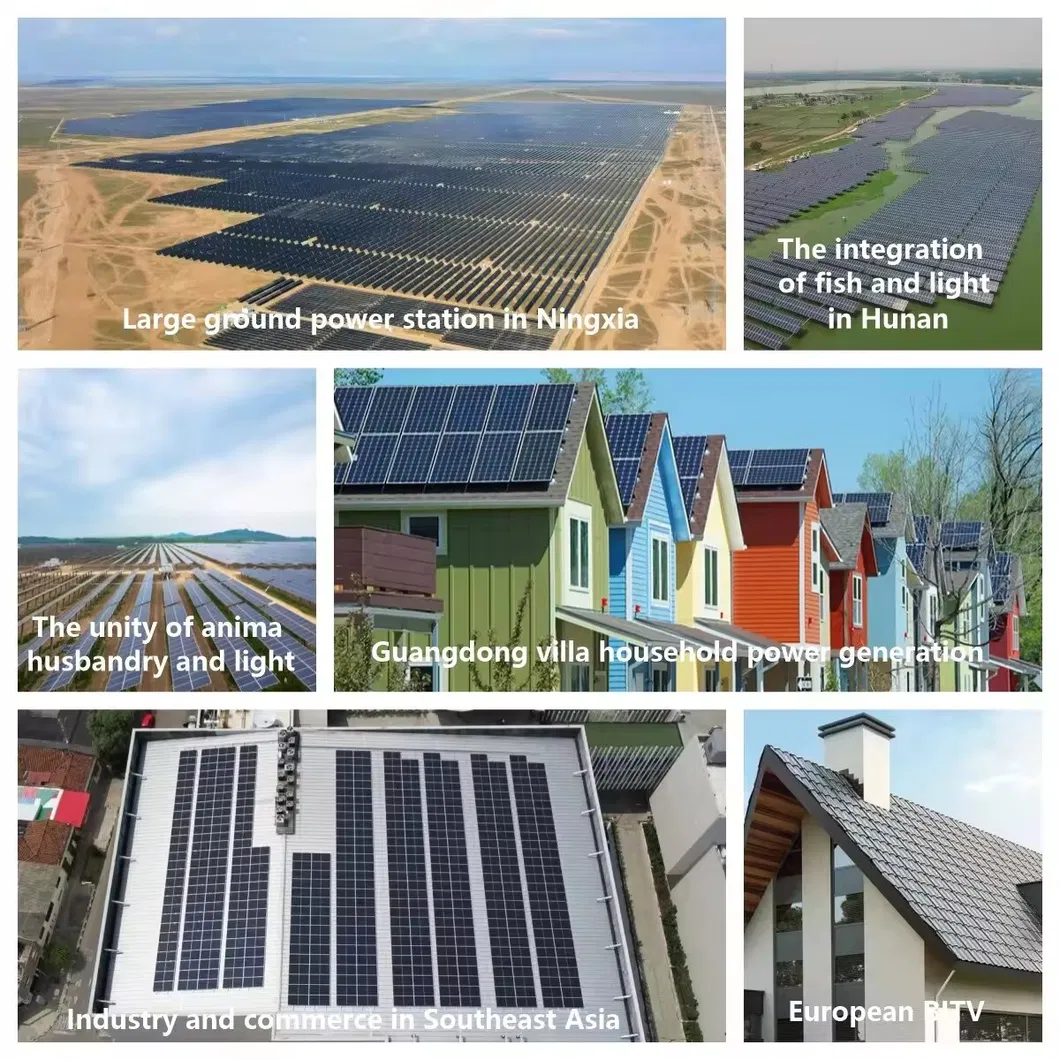

Project Case

🏭

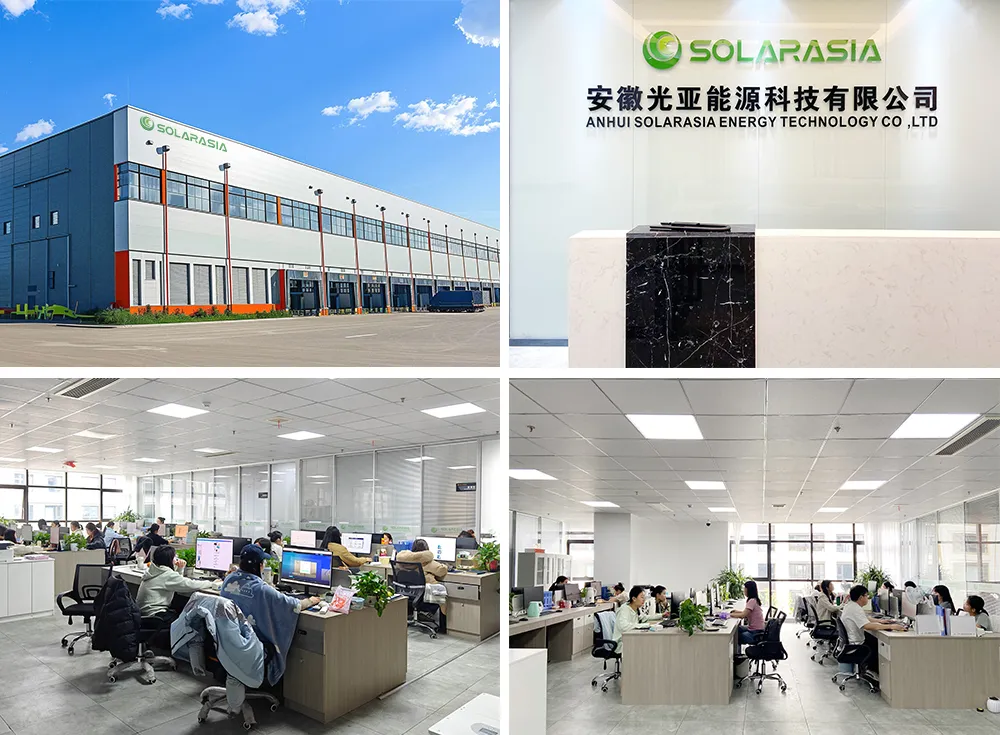

Production Capability

❓

Frequently Asked Questions

How to choose the right panel?

Tell us your demand, then our sales will recommend a suitable panel for you based on your specific power requirements and installation environment.

What's the difference between Mono and Poly panel?

Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less, though efficiency is typically lower.

How about the delivery time?

Standard delivery time is approximately 7 days for samples and 15 days for bulk orders, ensuring timely arrival for your project.

What is the warranty for solar panels?

Generally, the warranty for solar panels is 10 years for materials and workmanship, and we also offer a 25-year linear output power warranty.

How can I get better technical support?

We have a professional engineer team to provide the best support based on your requirements. We offer rapid online service to solve any technical problems within a short timeframe.

What are the bifaciality coefficients for these modules?

The bifaciality coefficients are φVoc: 98±5%, φIsc: 80±5%, and φPmax: 80±5%, allowing for significant energy gain from the rear side.
