Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
1 / 5
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup
Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup

Lightweight Solar Flat Roof Mounting System for Hassle-Free Setup

Customization: Available
After-sales Service: 24-Hour Service
Condition: New
Send Inquiry

Product Description

■ Basic Product Information
Model NO.
Solar Flat Roof Mounting System
Certification
ISO, CB, CE
Application
Home, Industrial, Commercial
Specification
Normal, Customized
Material
Hot-DIP Galvanized/Zinc-Aluminum-Magnesium
Productivity
10000t/Month
Delivery Time
Within 15 Days After Prepayment
Package Size
25.00cm * 22.00cm * 27.00cm
🛠 Installation Instructions
1
Preparation
Tools required: electric drill, level, spanner, safety rope, counterweight block/expansion bolt.
2
Roof Assessment
Confirm roof load-bearing capacity (≥25kg/m²) and drainage paths, avoiding pipes or vulnerable areas.
3
Positioning & Marking
Mark the racking base positions with chalk based on the panel layout, ensuring consistent horizontal spacing.
4
Fixing the Base
Counterweight type: place concrete blocks. Bolt type: drill holes and install waterproof spacers.
5
Bracket Assembly
Connect vertical rods and horizontal beams with stainless steel bolts. Ensure vertical error is <2°.
6
Angle Adjustment
Set the inclination angle (recommended local latitude +5°~10°) and lock the bolts.
7
Panel Installation
Snap panels into bracket rails and secure tightly with clamps.
📋 Technical Specifications
Feature Round Tube Square Tube Rectangle Tube
Outer Diameter 20-1200mm 10*10-500*500mm 5*10-100*600mm
Wall Thickness 0.5-50mm 0.5-50mm 0.5-50mm
Length 2m-14m or as requirements
Material Hot-dip galvanized / zinc-aluminum-magnesium
Productivity 10000T/Month
Solar Mounting System Setup

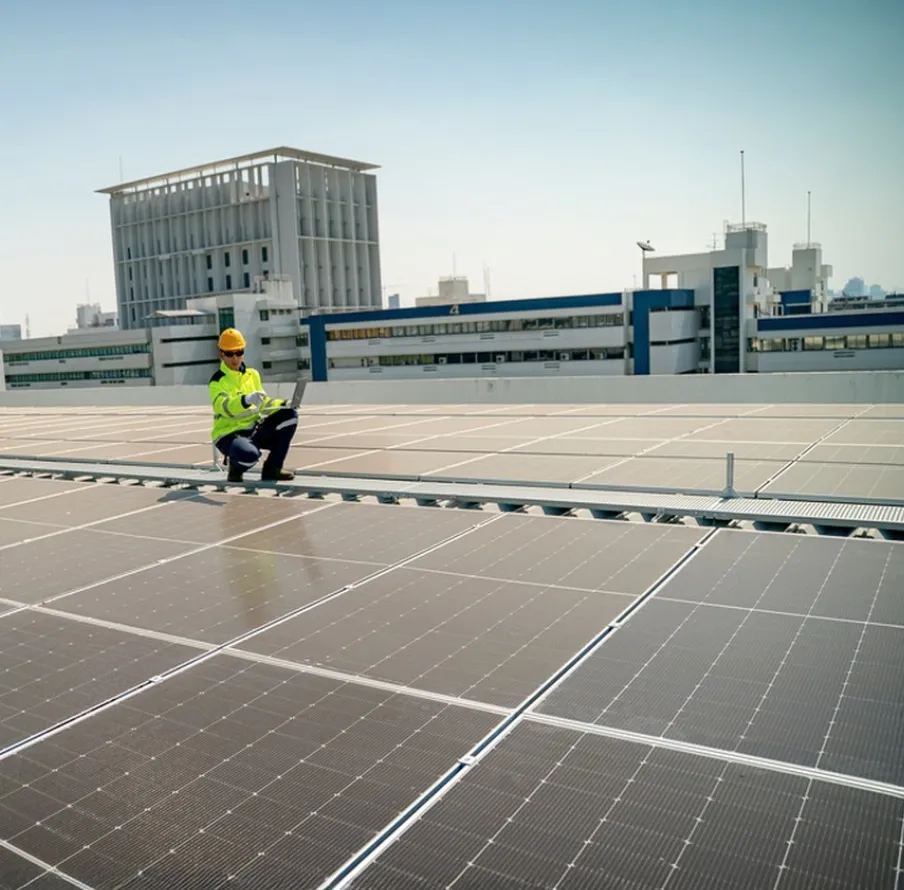

Flat Roof Installation
Mounting System Details
Technical Layout
Component View
❓ Frequently Asked Questions
What is the minimum order quantity (MOQ)?
One unit is acceptable. For larger quantities, please contact us for volume discounts and detailed shipping information.
Can you produce customized profiles based on drawings?
Yes, we have professional engineers who can design CAD drawings and establish molds according to your specific project requirements.
What certifications do your products hold?
Our products meet international standards including ISO, CB, and CE. We can also provide certification based on specific regional requirements like DIN, AS/NZS, or GB standards.
How long is the production lead time?
Standard design products typically have a delivery time of 7 to 10 days. New or customized designs may require verification from our engineering team first.
Are samples available for quality testing?
Yes, we welcome sample orders to check product quality. We offer free samples for small quantities of standard roof mounting products.
What are your standard payment terms?
Usually, we accept T/T with a 30% deposit and the balance paid before shipment. L/C is also an acceptable payment method.
