Trina/Longi/Ja/Jinko Solar Panel 700W 710W 715W 720W 730W 740W Monocrystalline/Mono Photovoltaic/PV Solar Panel Price for Solar Renewable Energy Power System

Customization:	Available
After-sales Service:	Yes
Number of Cells:	132 Cells

📋 Basic Information

Model NO.

TSM-NEG21C.20

Application

Industrial

Certification

ISO, CE

Material

Monocrystalline Silicon

J-Box

IP 68 Rated

Weight

38.3 Kg

Cell Size

182mm x 210mm

Solar Cells

N-Type I-Topcon

Package Size

240cm * 135cm * 5cm

Specification

2384*1303*33 mm

☀️ Product Description

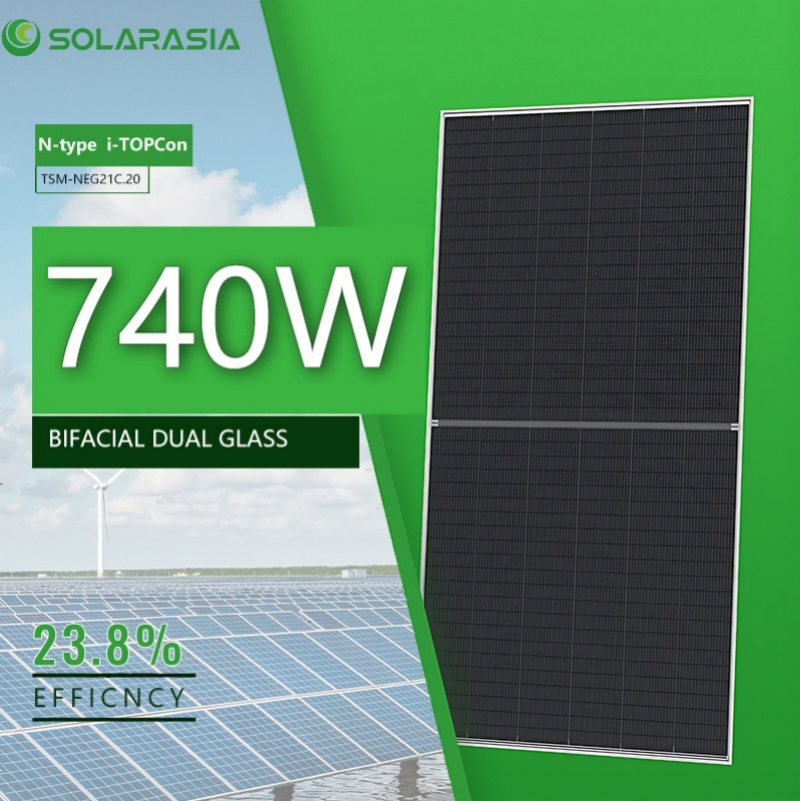

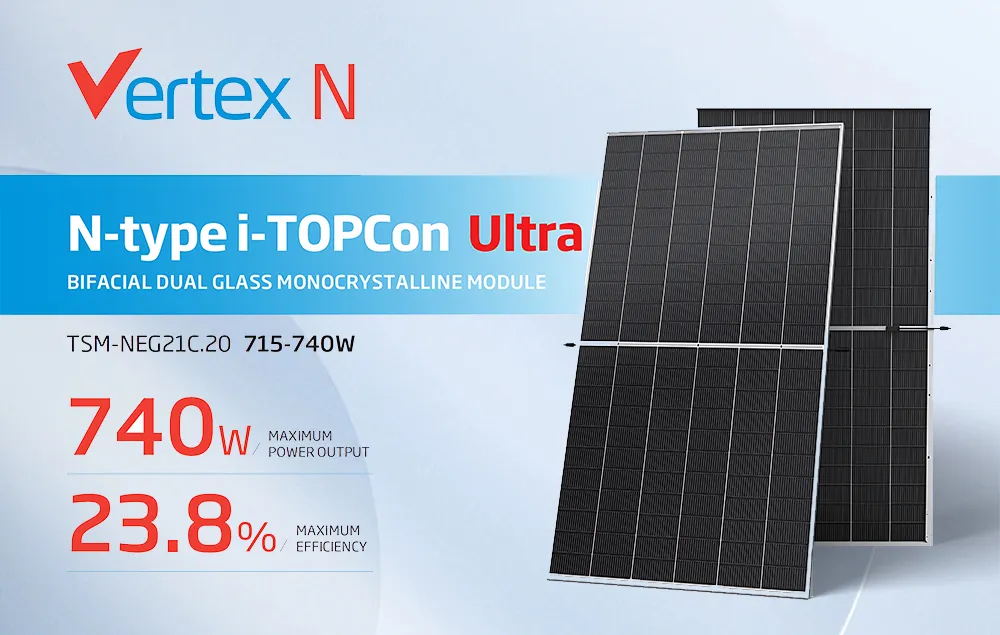

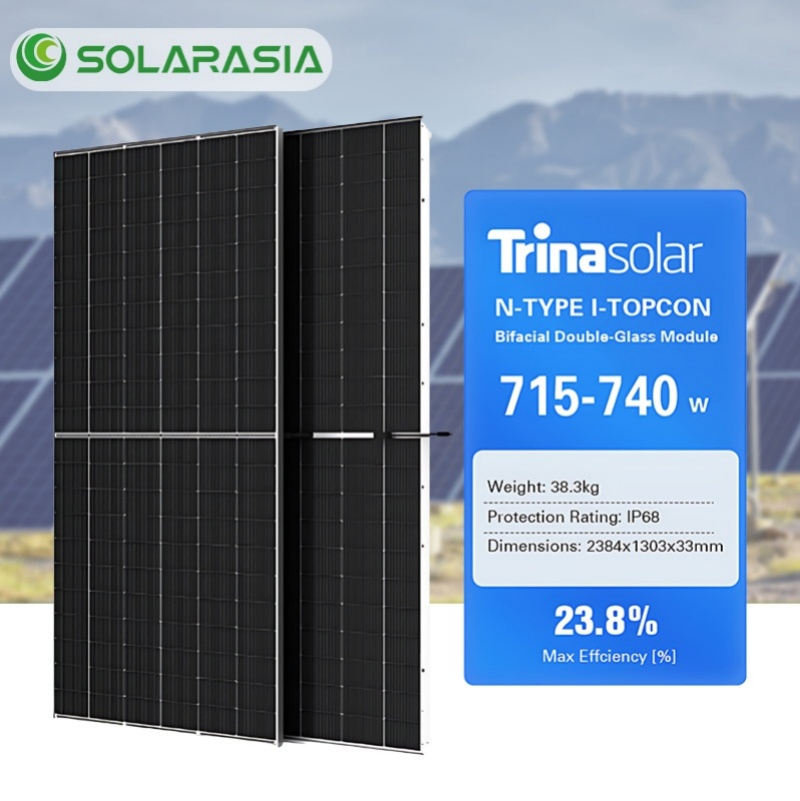

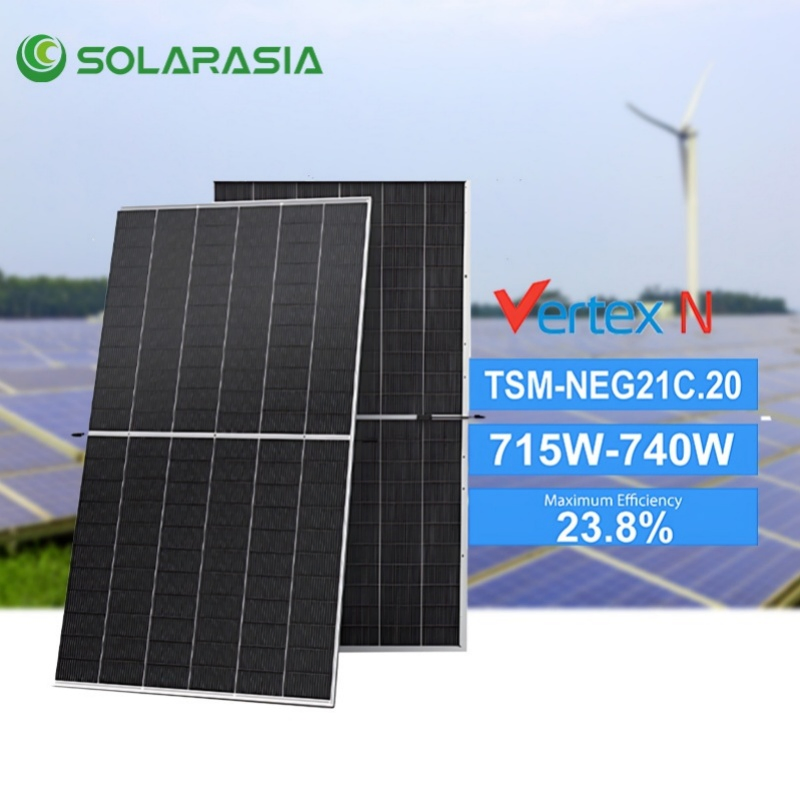

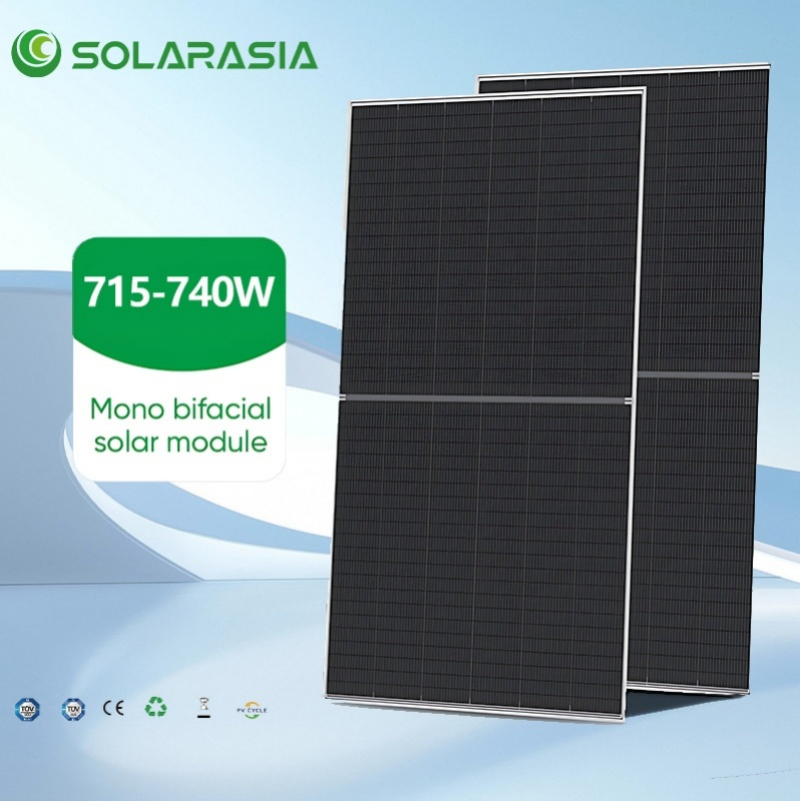

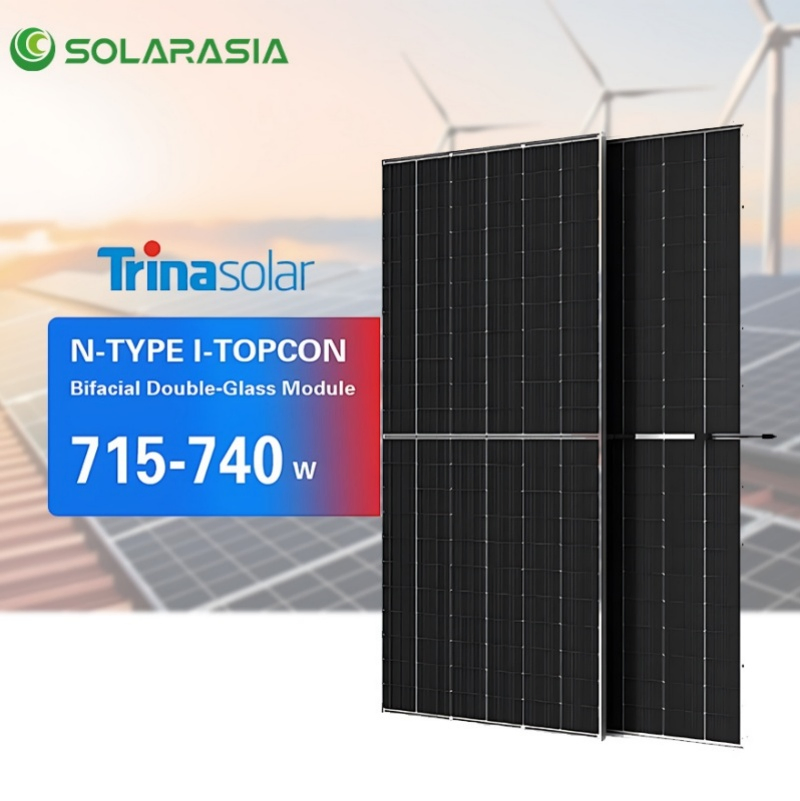

The Vertex N TSM-NEG21C.20 is a flagship high-power bifacial N-type i-TOPCon double glass monocrystalline solar panel. With power outputs ranging from 715W to 740W, this module delivers industry-leading efficiency up to 23.3% on the advanced 210mm wafer platform.

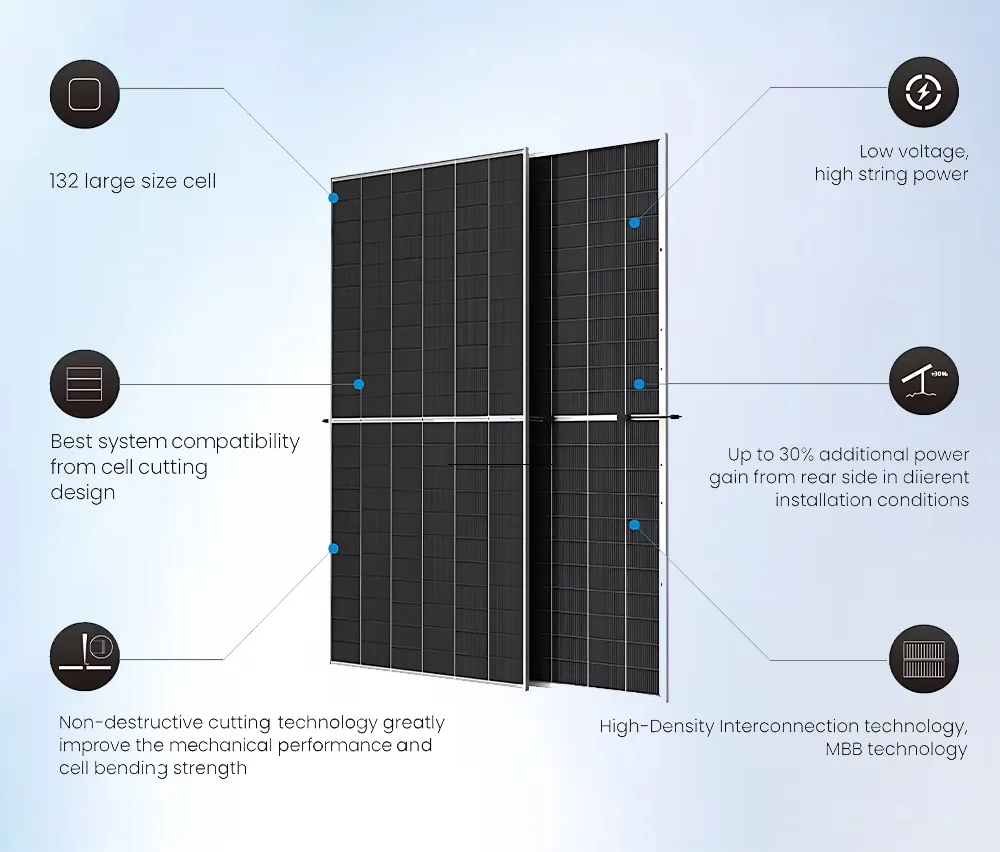

Featuring 132 half-cut N-type i-TOPCon cells and a bifacial design (up to 80%±5% bifaciality), it is engineered for maximum energy yield and superior reliability in utility-scale and commercial projects.

🚀

Ultra-High Power & Efficiency: Up to 740W output and 23.3% module efficiency using patented i-TOPCon technology.

🔄

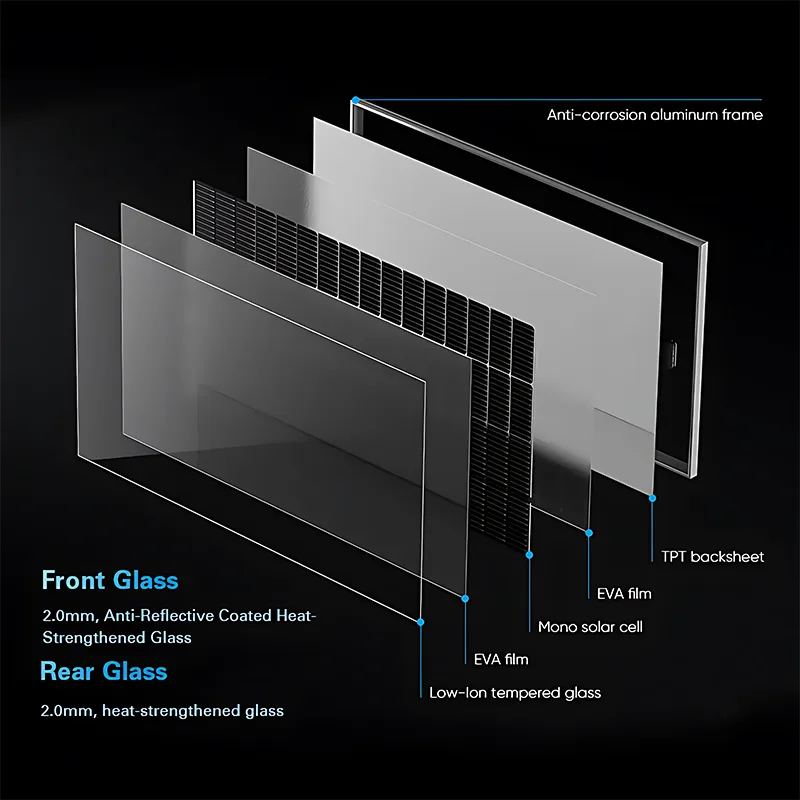

Bifacial Dual-Glass Design: 10-20% additional power gain from the rear side with a 30-year linear power warranty.

🛡️

High Reliability: Minimized micro-cracks via non-destructive cutting; 5400Pa front / 2400Pa back mechanical load.

📊

Superior Energy Yield: Excellent low-light performance and low temperature coefficient (-0.29%/°C).

📈 Technical Parameters (STC)

Model (Wp)	715W	720W	725W	730W	735W	740W
Max Power (Pmax)	715 Wp	720 Wp	725 Wp	730 Wp	735 Wp	740 Wp
Voltage (Vmpp)	41.1 V	41.3 V	41.5 V	41.7 V	41.9 V	42.1 V
Current (Impp)	17.4 A	17.44 A	17.47 A	17.51 A	17.55 A	17.58 A
Efficiency	23.0%	23.2%	23.3%	23.5%	23.7%	23.8%

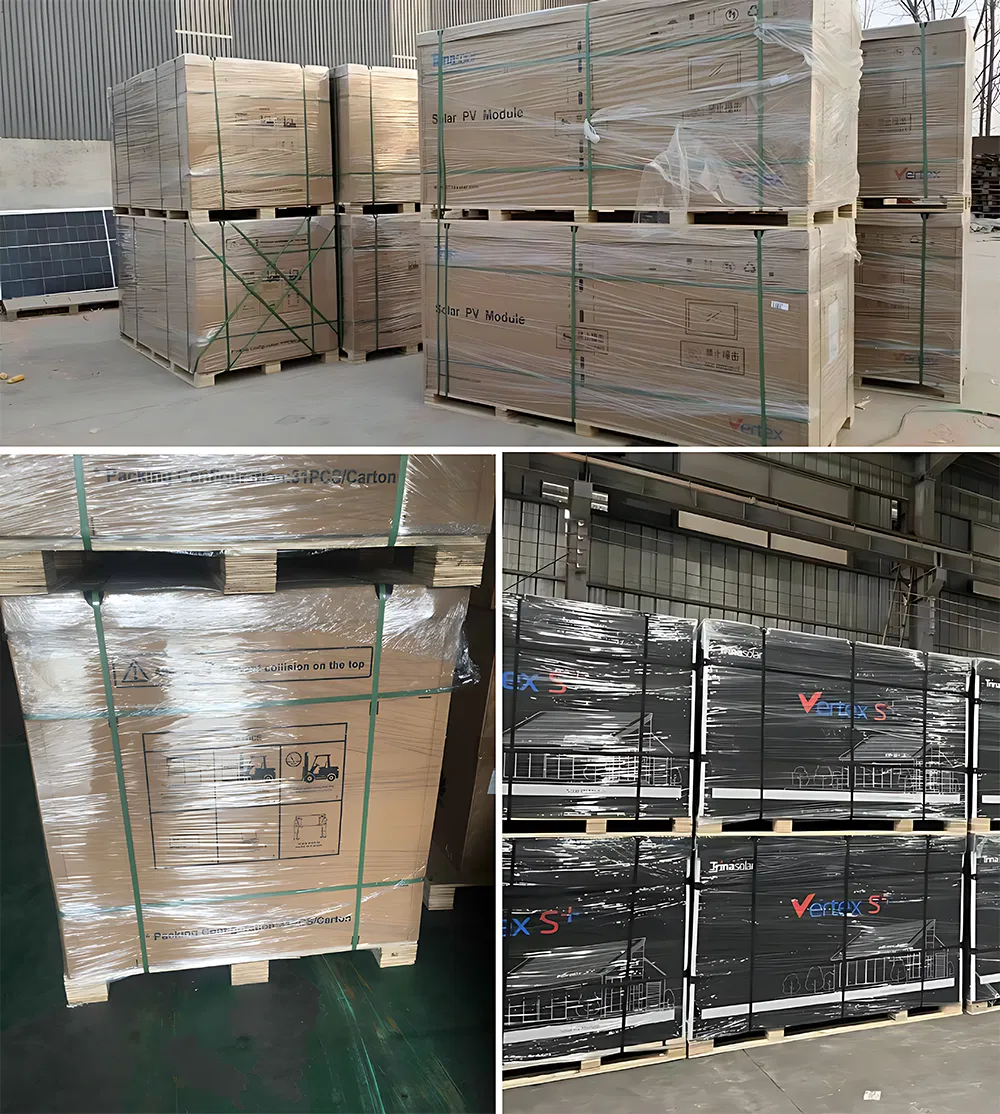

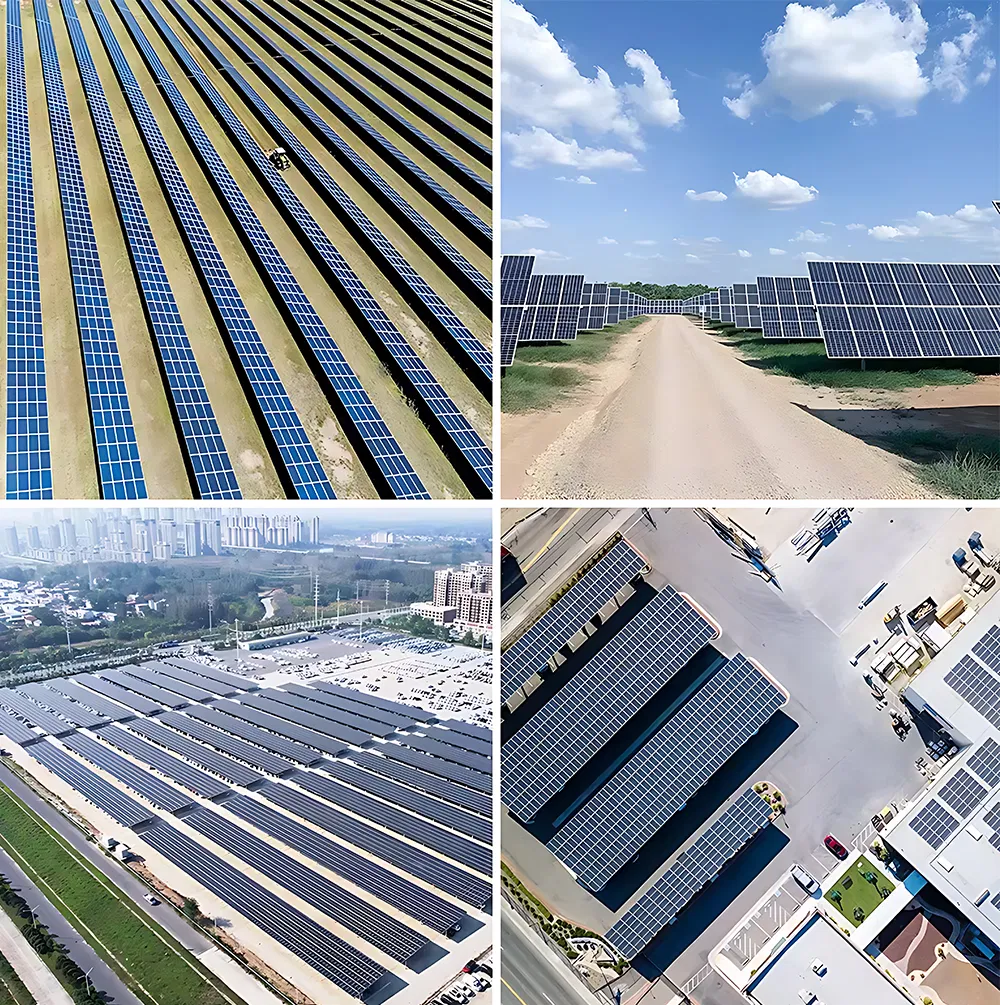

📦 Packing & Project Case

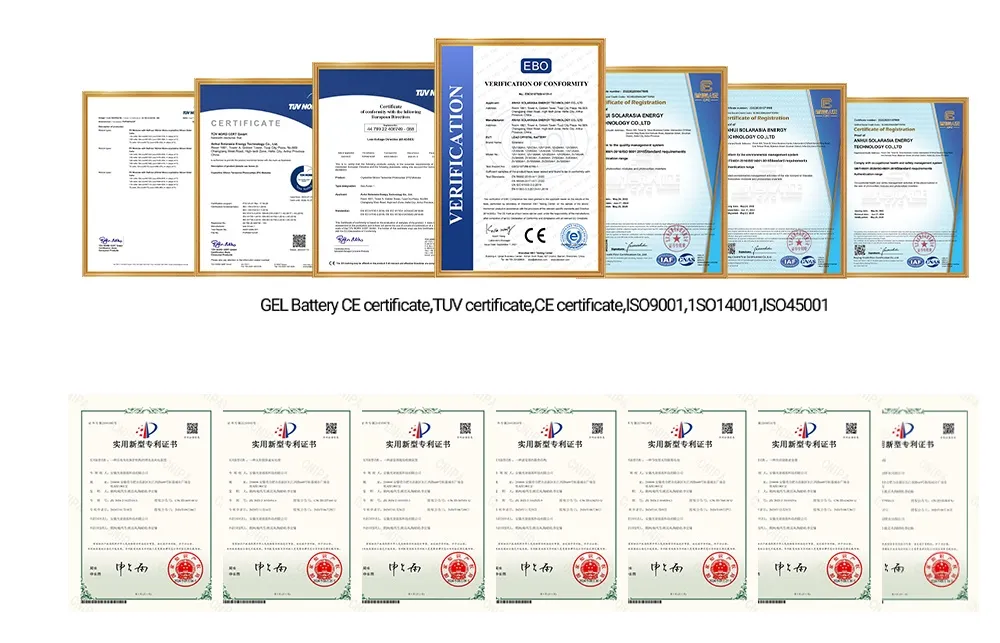

📜 Quality & Certifications

❓ Frequently Asked Questions

1. What is the power output range of this series?

The TSM-NEG21C.20 series delivers ultra-high power ranging from 715W to 740W, specifically optimized for large-scale utility and industrial solar projects.

2. What are the benefits of N-type i-TOPCon technology?

N-type technology offers higher efficiency, a lower temperature coefficient, and significantly better performance in low-light conditions compared to traditional P-type modules.

3. Does the module support bifacial energy generation?

Yes, it features a bifacial dual-glass design that allows the rear side to capture reflected light, potentially increasing total energy yield by 10-20%.

4. How durable is the panel against extreme weather?

The module is certified for high mechanical loads, withstanding up to 5400 Pa of snow load on the front and 2400 Pa of wind load on the back.

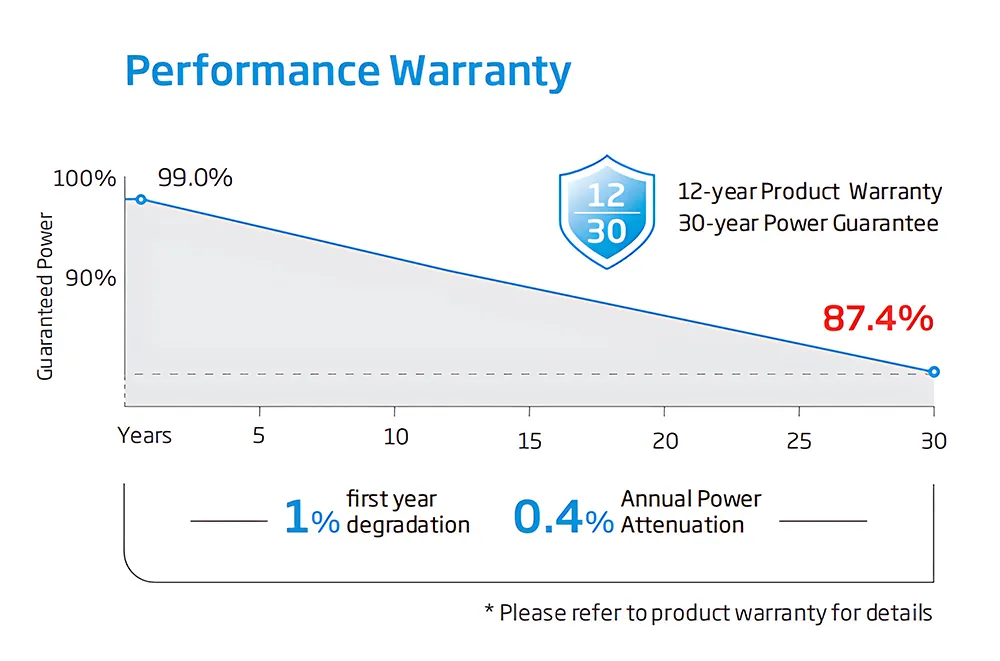

5. What is the expected lifespan and warranty?

The product includes a 30-year linear power warranty, ensuring at least 87.4% performance at the end of year 30, thanks to its low degradation rate.

6. Are these panels compatible with standard mounting systems?

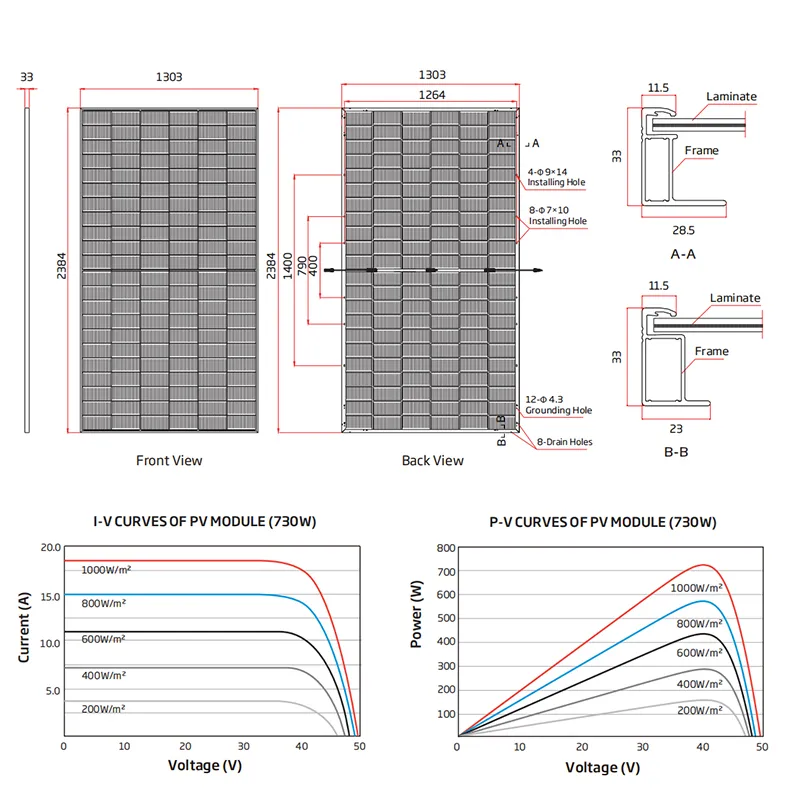

Yes, despite their high wattage, they use standardized dimensions (2384 x 1303 x 33 mm) designed for optimal container utilization and standard racking compatibility.
