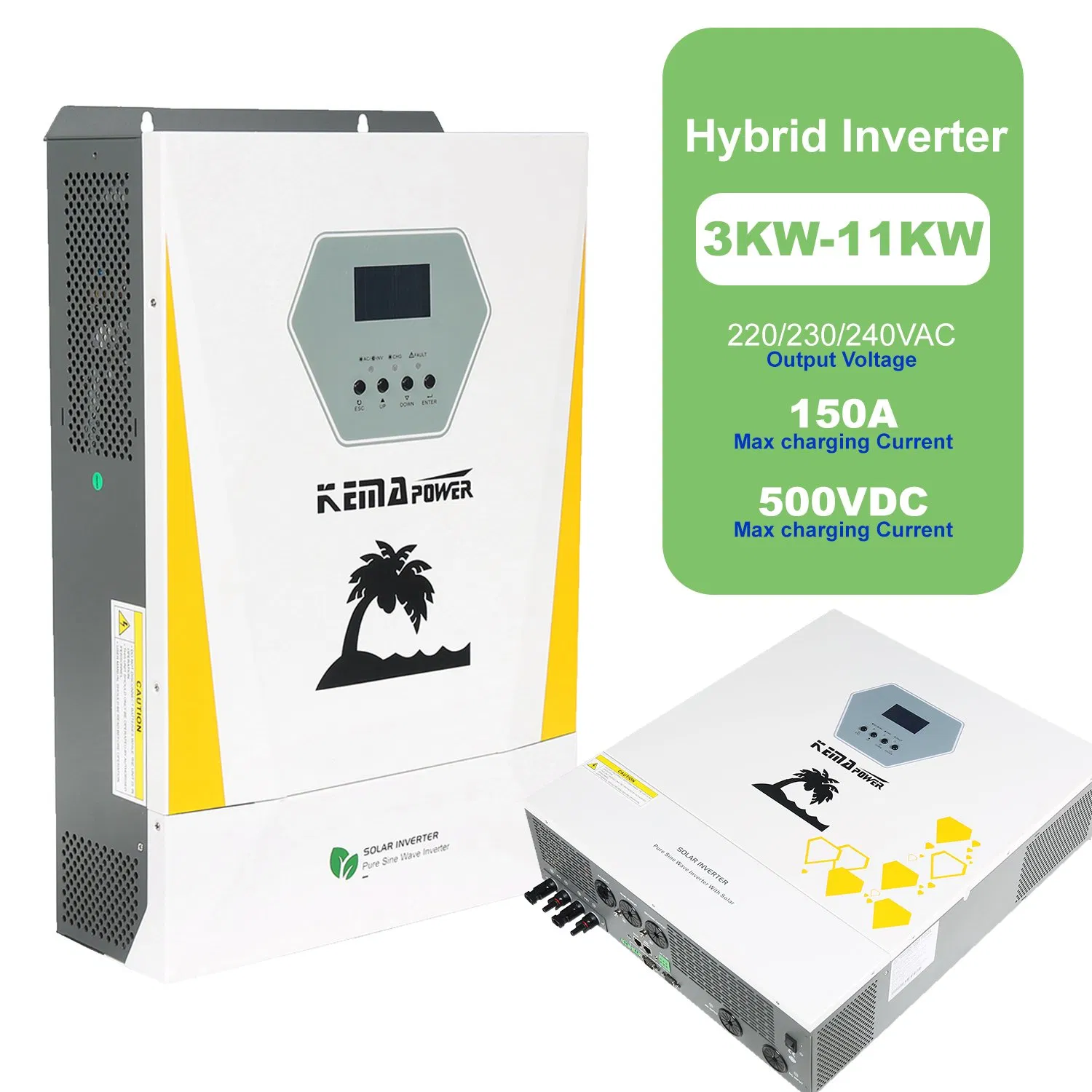

Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
1 / 5
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System
Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System

Without Battery 3kw 3.6kw 6.2kw 11kw All in One MPPT off Grid Hybrid Solar Power Inverter for Home Solar System

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
SUB-D
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Charge Controller Solar Hybrid off Inverter
Specification
1.5-5.5KW
HS Code
8504403090

Off Grid Hybrid Solar Inverter

SUB-D 3-11KW Series

Key Features

  • High Frequency off grid hybrid solar inverter SUB-D 3-11KW, PF=1
  • 3 in 1 design: Power Inverter + MPPT controller + Grid Charger
  • Working without battery during daytime
  • Support lithium activation wake-up and cold start function
  • Auto restart while AC is recovering
  • Intelligent power supply mode: smart distribution of solar/mains/battery power
  • AC and PV charge voltage adjustable for different battery types
  • Selectable Lead acid / Lithium battery charging parameters
  • Solar, Grid and Battery Energy complement each other with priority selection
  • RS232, BMS/RS485, Dry Contact Communication support

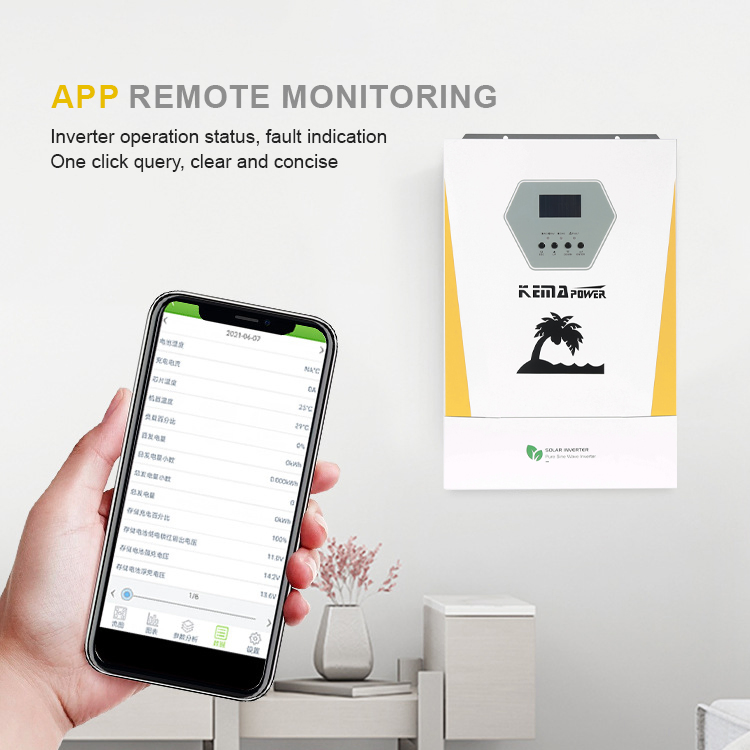

  • WiFi Plug or GPRS option for Mobile App monitoring

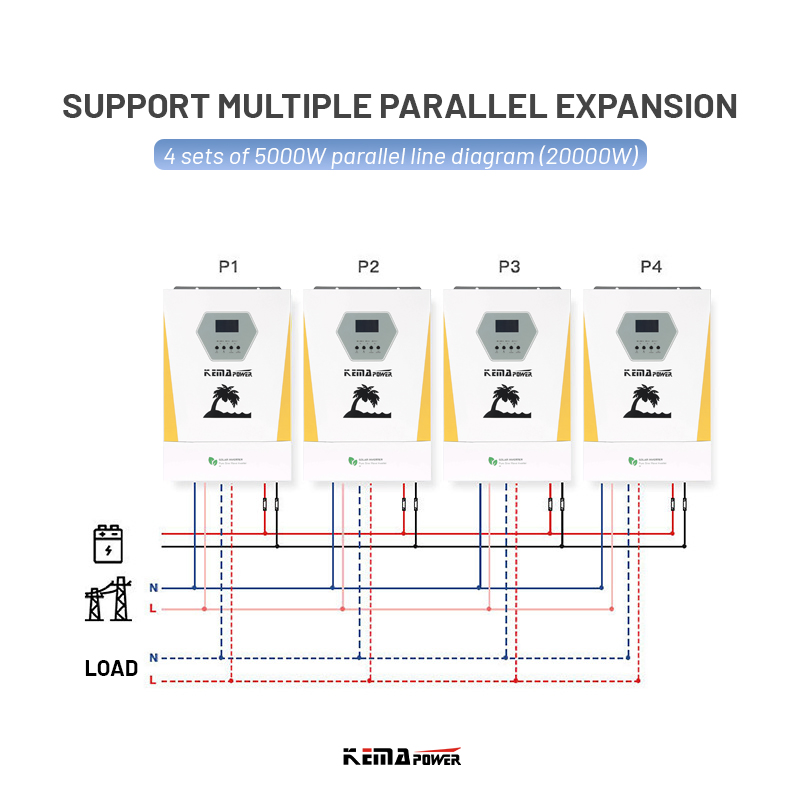

  • 6.2KW/11KW models support parallel function (up to 9 units)
  • Wide MPPT range up to 500VDC
  • Pure sine wave output suitable for all types of loads
  • Full protection: overload, over-temperature, short-circuit, battery low/reverse

Technical Specifications

ITEM SUB-D-E3024 SUB-D-3624 SUB-D-6248 SUB-D-11048 SUB-D-6248GP SUB-D-11048GP
Rated Power 3KW 3.6KW 6.2KW 11KW 6.2KW 11KW
Input Voltage 220/230/240VAC
Selectable Range 90-280VAC (Home Appliances) / 170-280VAC (PC)
Output Waveform Pure Sine Wave
Parallel Capacity No No No No Max 9 Units Max 9 Units
Battery Voltage 24VDC 48VDC
Max PV Array Power 3KW 4.2KW 6.2KW 2*5.5KW 6.2KW 2*5.5KW
MPPT Range 50-500VDC 150-500VDC

Product Gallery

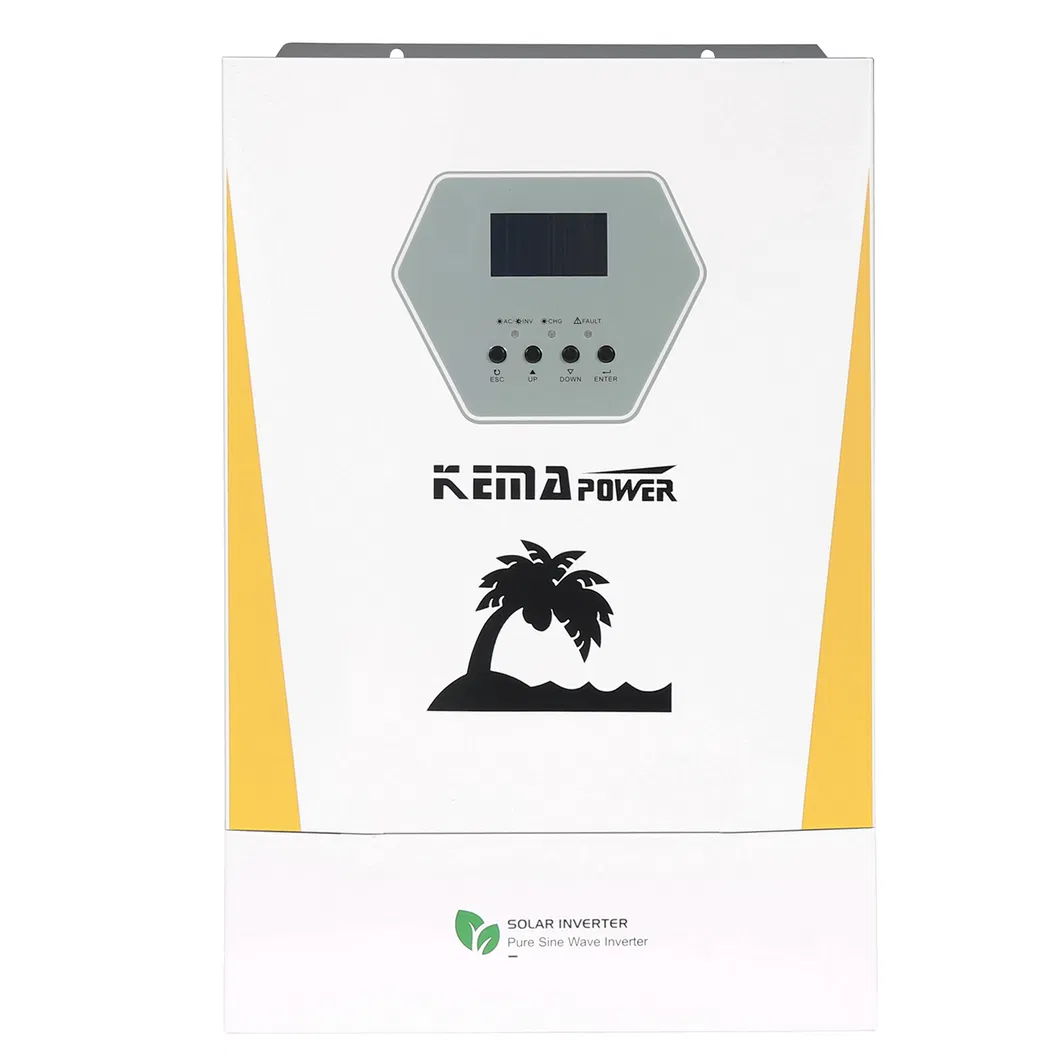

Hybrid Solar Inverter View 1

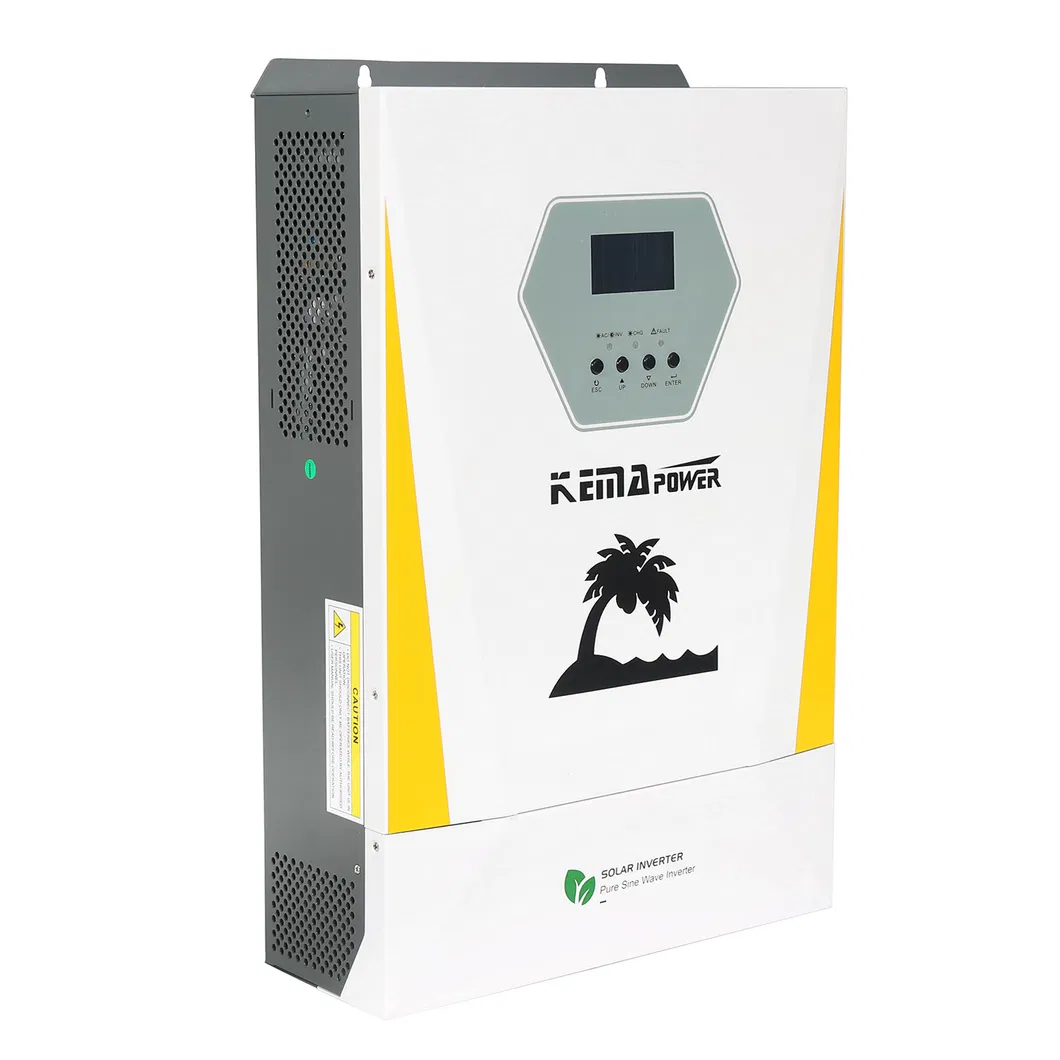

Hybrid Solar Inverter View 2

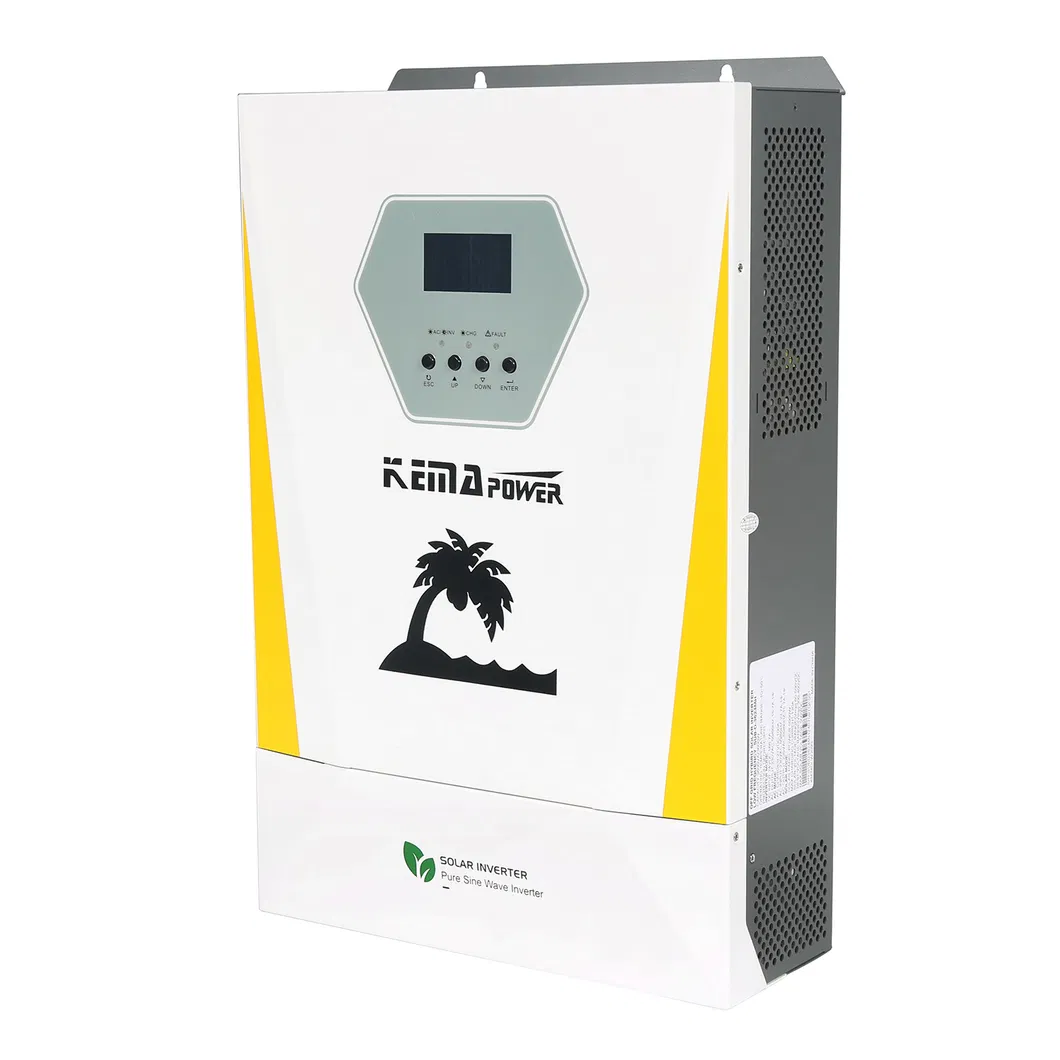

Hybrid Solar Inverter View 3

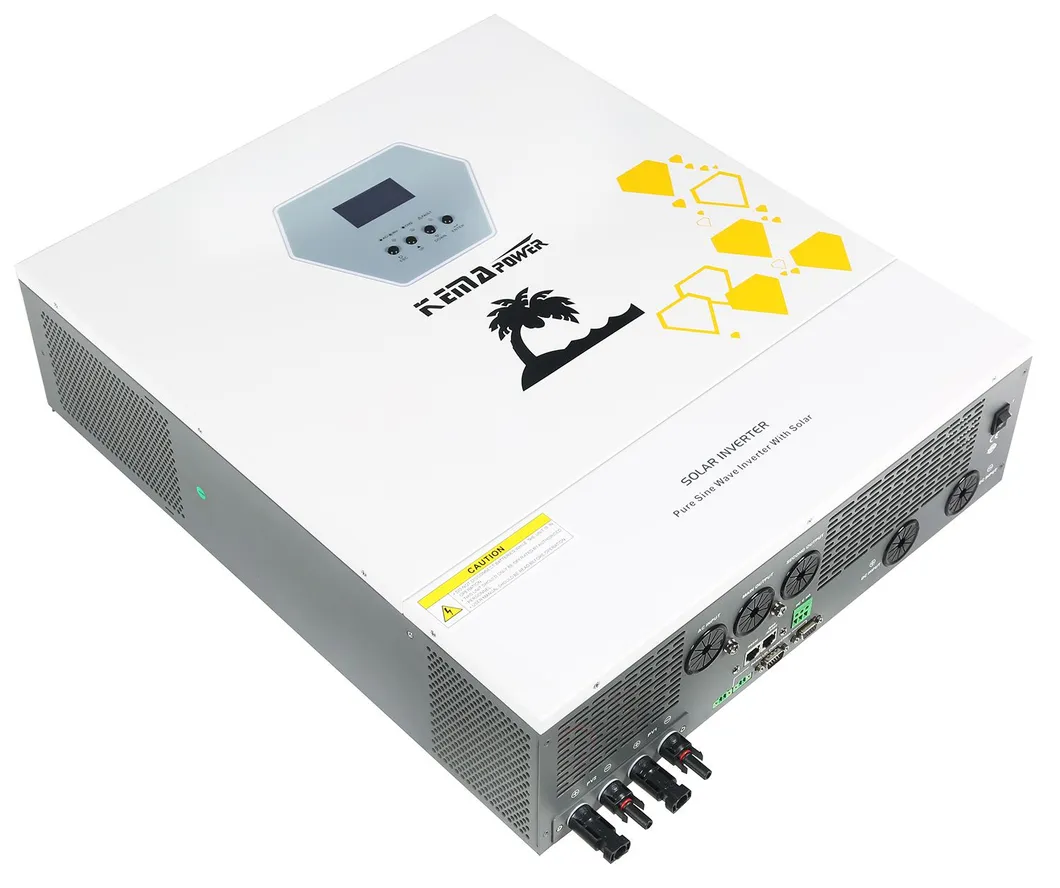

Inverter Connection Diagram

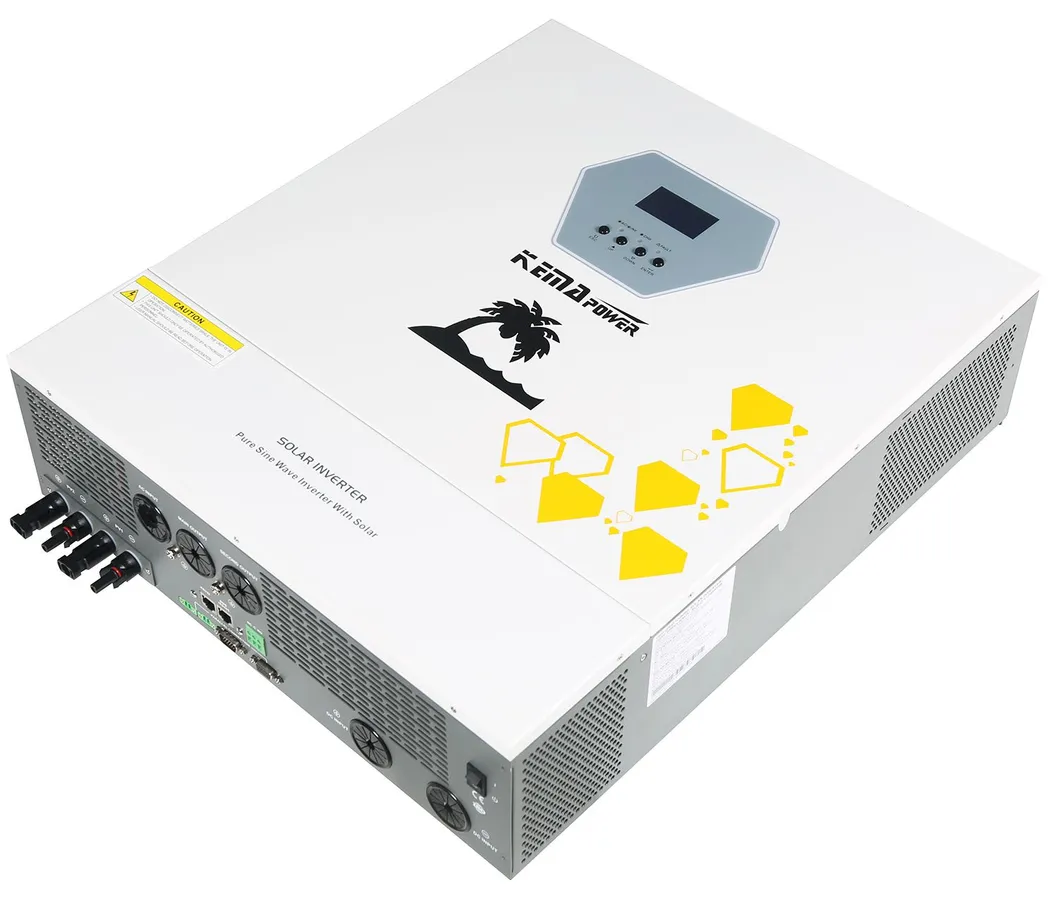

Inverter Interface

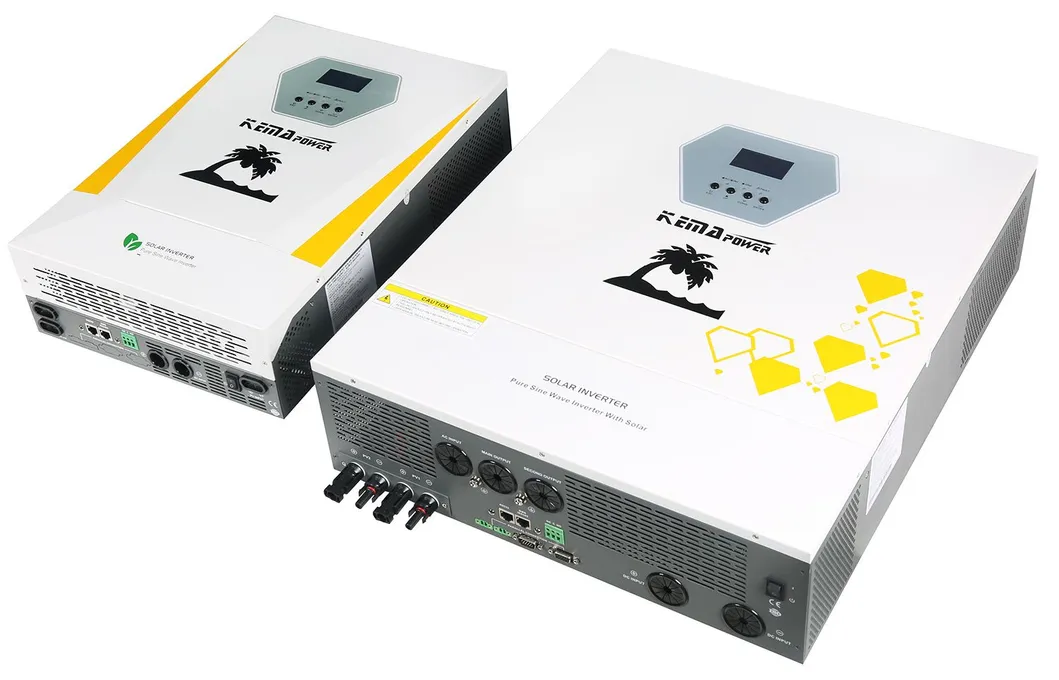

Inverter Details 1

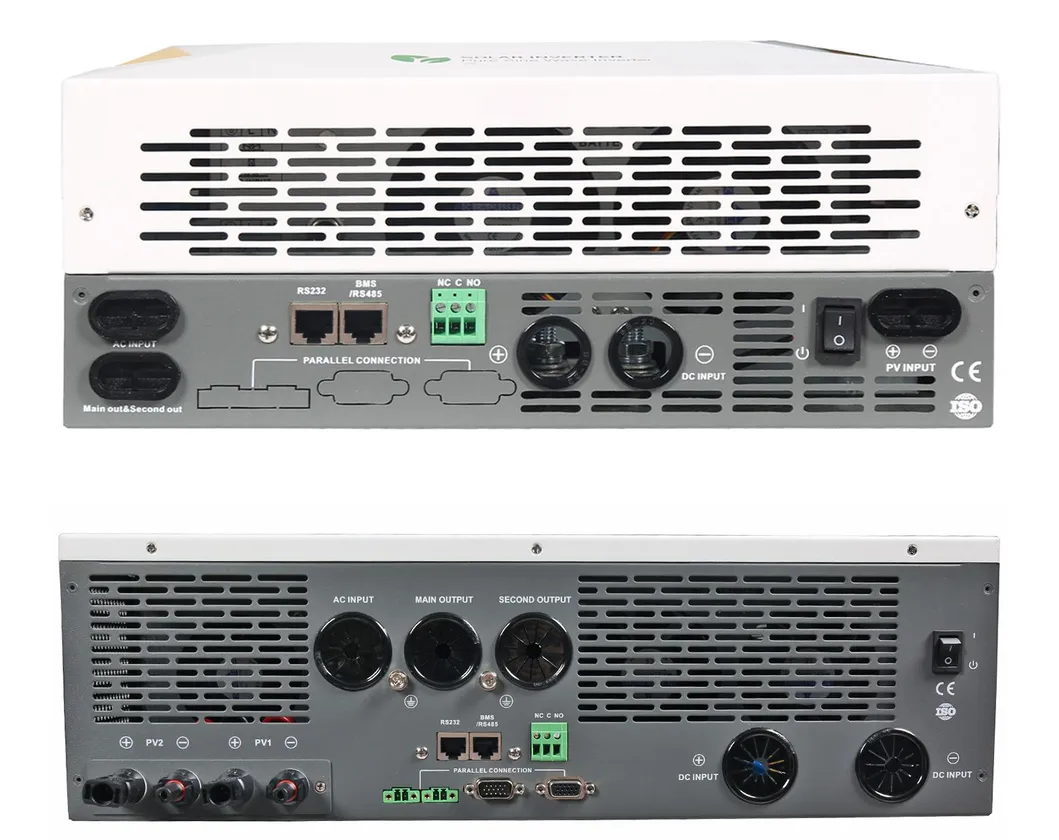

Inverter Details 2

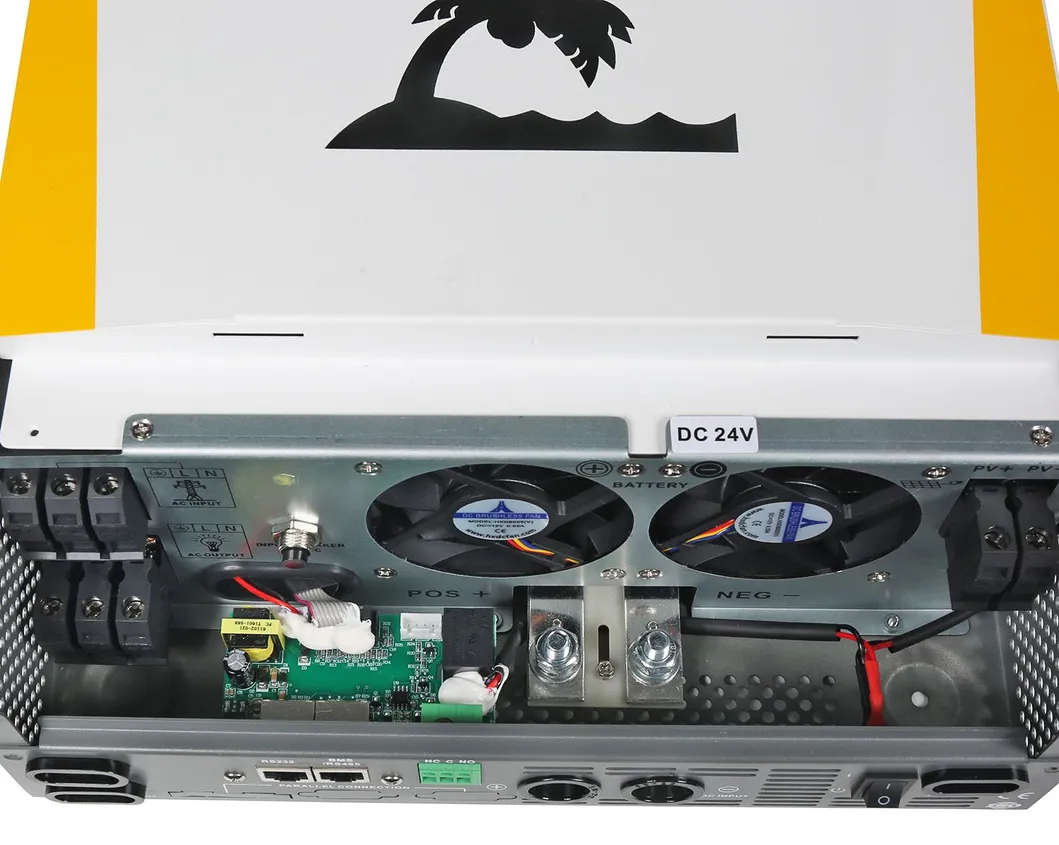

Inverter Details 3
Product Layout

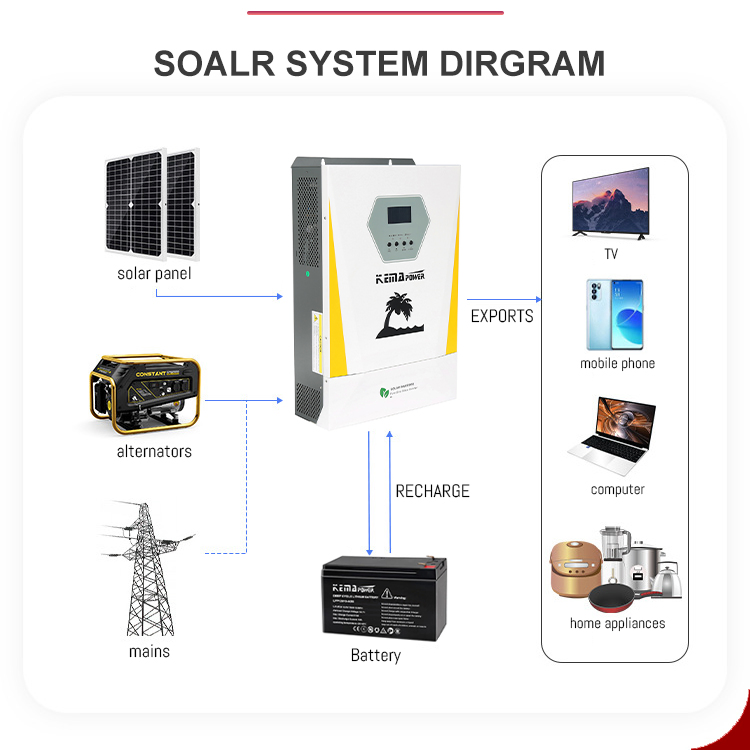

System Application
Installation Guide
Technical Features

Frequently Asked Questions

Can the SUB-D series inverter work without a battery?
Yes, this hybrid solar inverter is designed to work without a battery during the daytime, utilizing solar power directly to support the loads.
Which models support parallel operation?
The 6.2KW and 11KW models (GP series) support parallel functionality, allowing you to connect up to 9 units for higher capacity.
Does the inverter support lithium batteries?
Yes, it features a lithium activation wake-up function and adjustable charging voltages to support both Lead-acid and Lithium battery types.
What is the maximum MPPT range for these inverters?
The wide MPPT range spans from 50-500VDC or 120-500VDC depending on the specific model, ensuring high efficiency in various solar conditions.
Is remote monitoring available?
Absolutely. You can opt for a WiFi plug or GPRS module to monitor your system's performance via a mobile app.
What safety protections are built-in?
The inverter includes comprehensive protection against overload, over-temperature, short-circuits, low battery voltage, and battery reverse connection.
