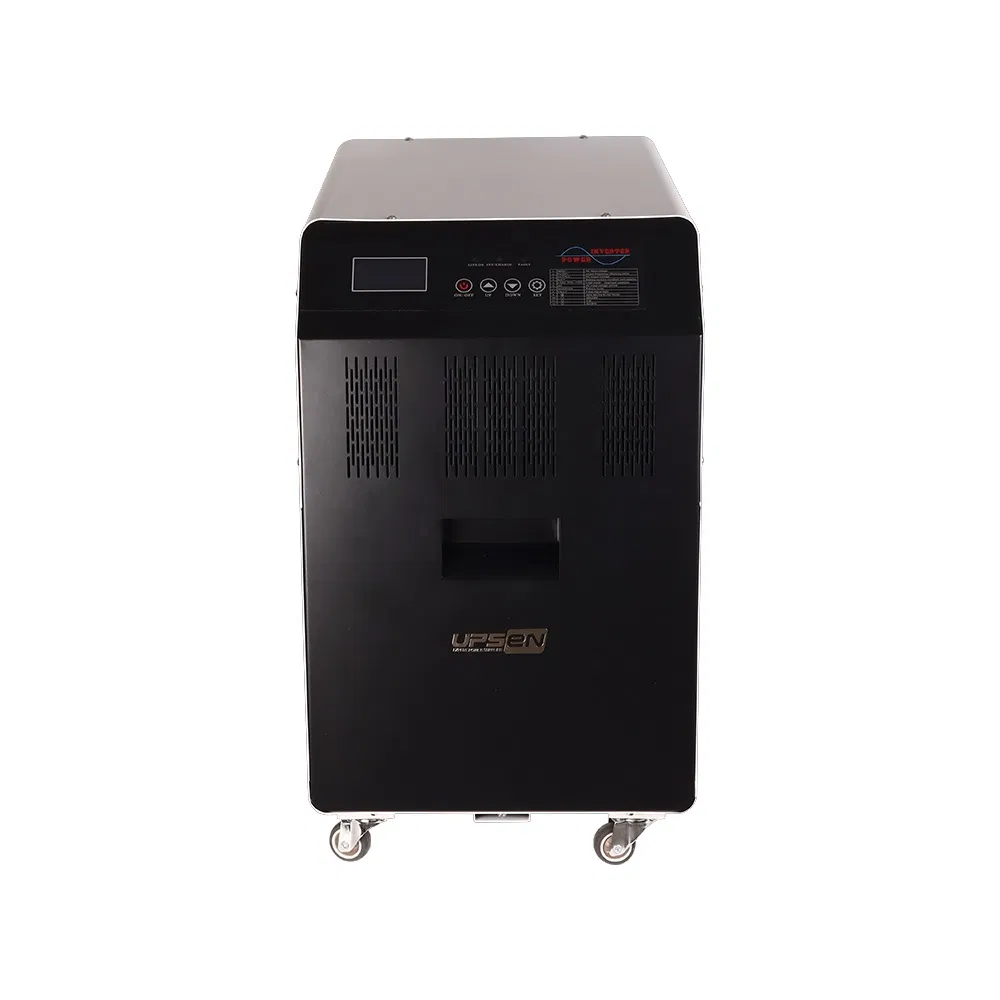

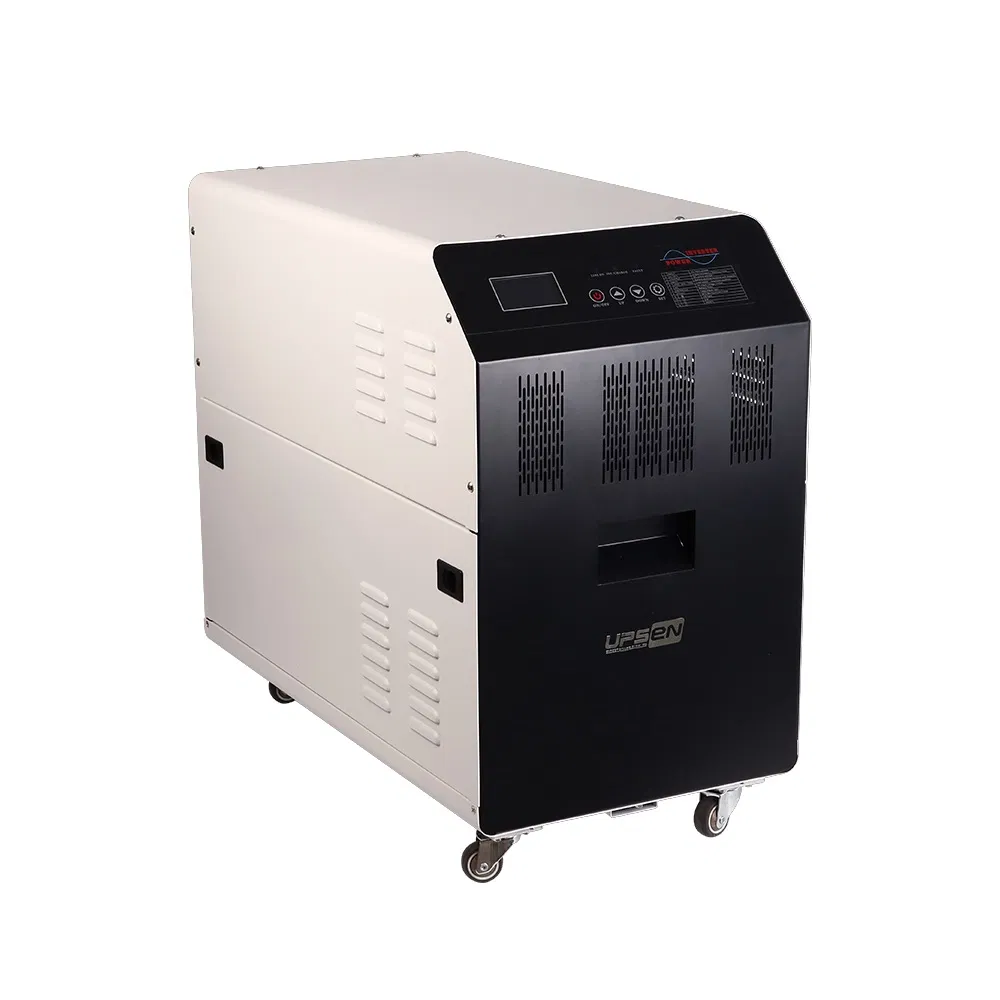

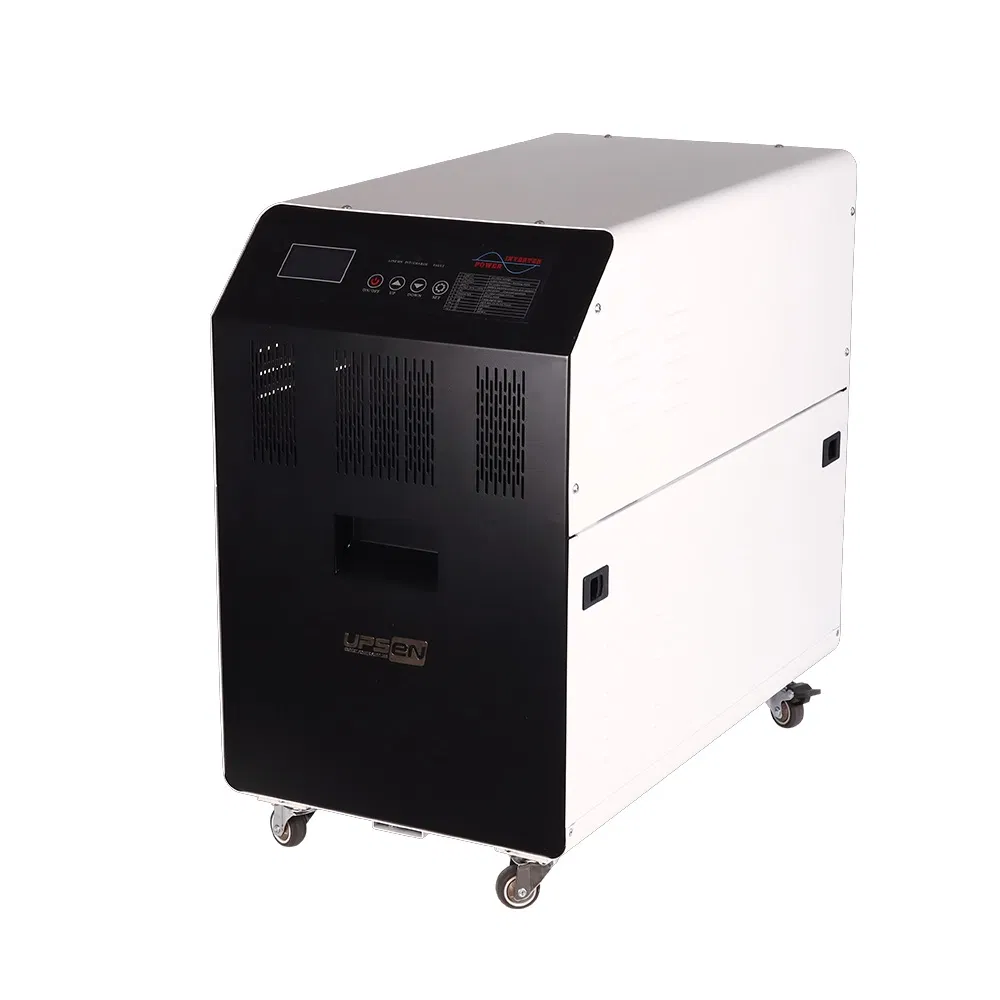

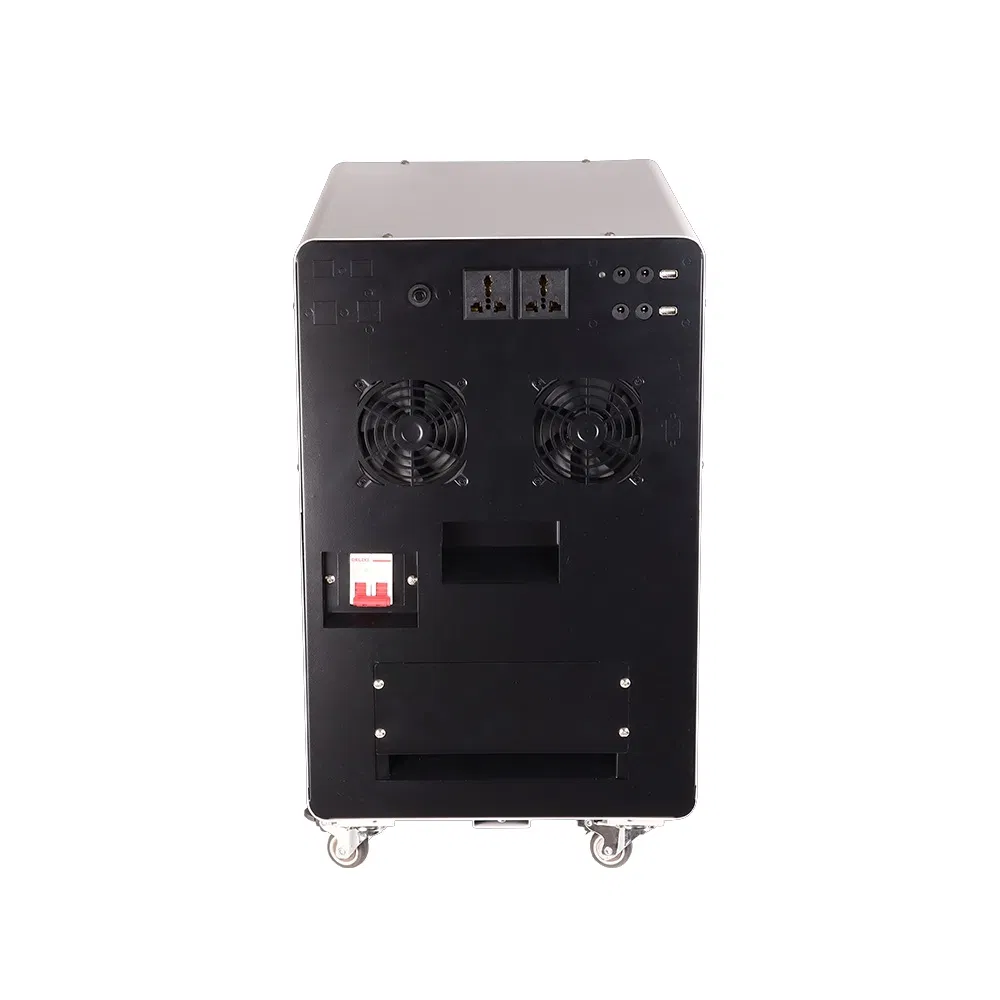

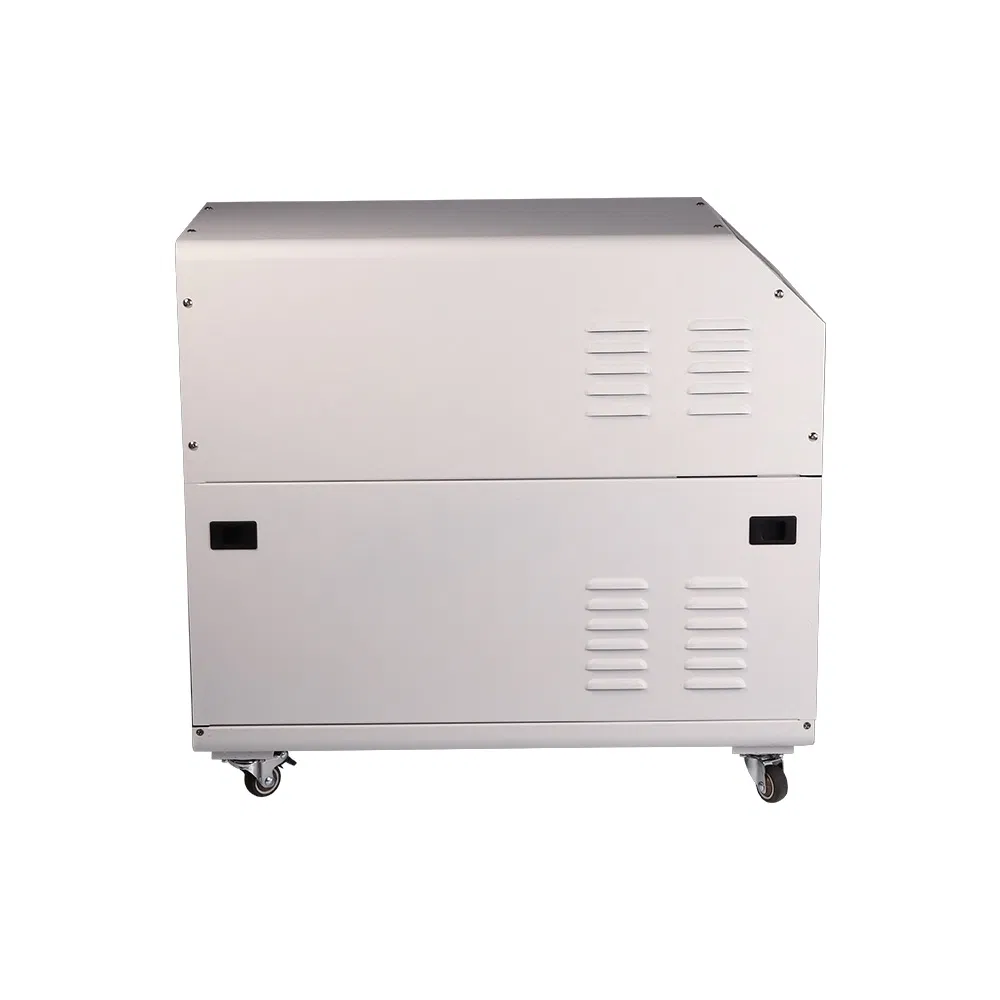

1kw 2kw 3kw Solar Hybrid Inverter Integrated Machine with Lithium Battery

1 / 5

1kw 2kw 3kw Solar Hybrid Inverter Integrated Machine with Lithium Battery

Customization:	Available
After-sales Service:	1years
Warranty:	1years

Send Inquiry

Product Description

Basic Specifications

Model NO.

WL 1K-3K

Nature of Source

Passive inverter

Phase

Single

Output Power

>1000W

Certification

SAA, CE, ROHS, ISO9001, CCC

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Push-pull Type

Output Wave

Sine Wave Inverter

Battery Type

Lithium Ion Battery

Rated Voltage

12/24/48VDC

Current

60A

HS Code

8504403090

Capacity

10,000,000

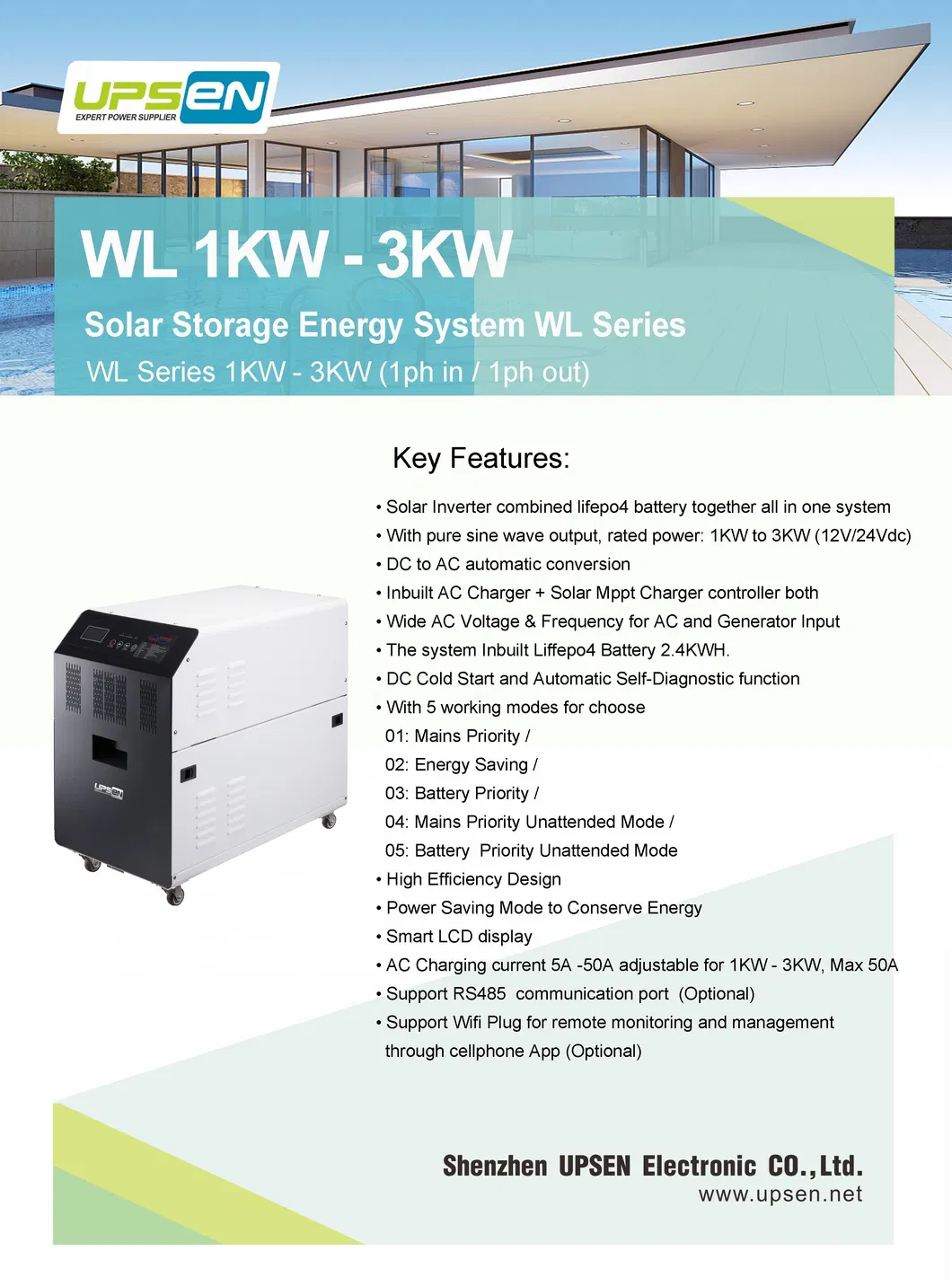

Solar Storage Energy System WL Series

✔

Solar Inverter combined Lifepo4 battery all-in-one system

✔

Pure sine wave output, rated power: 1KW to 3KW

✔

DC to AC automatic conversion

✔

Inbuilt AC Charger + Solar MPPT Charger controller

✔

Wide AC Voltage & Frequency for AC and Generator Input

✔

System Inbuilt Lifepo4 Battery 2.4KWH

✔

DC Cold Start and Automatic Self-Diagnostic function

✔

Smart LCD display and adjustable settings

5 Working Modes Selection

01: Mains Priority

02: Energy Saving

03: Battery Priority

04: Mains Unattended

05: Battery Unattended

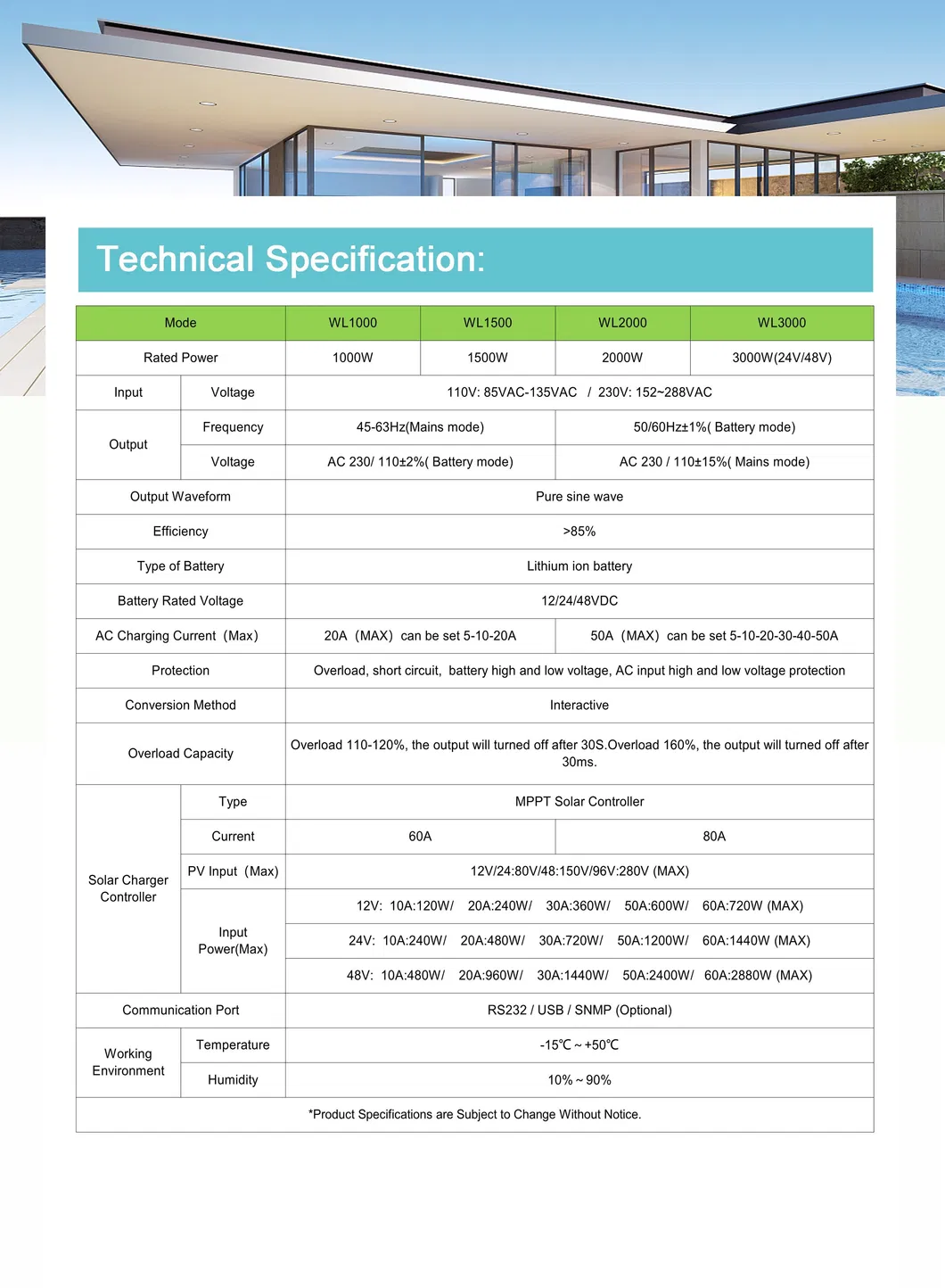

Technical Specifications

Mode	1000W	1500W	2000W	3000W (24V/48V)
Rated Power	1000W	1500W	2000W	3000W
Input Range	110V: 85VAC-135VAC / 230V: 152~288VAC
Frequency	45-63Hz (Mains)		50/60Hz±1% (Battery)
Output Waveform	Pure Sine Wave
Efficiency	>85%
Battery Type	Lithium ion battery
AC Charge Current	20A (Max) Adjustable		50A (Max) Adjustable
Solar Controller	MPPT Solar Controller
Solar Current	60A		80A
Environment Temp	-15ºC ~ +50ºC

Frequently Asked Questions

● What is your standard packing method?

Generally, we pack our goods in neutral white boxes and brown cartons. Customized branded packaging is available with proper authorization.

● What are the accepted payment terms?

T/T 30% as deposit, and 70% before delivery. We provide product and package photos before the final balance is paid.

● What are the delivery terms and lead time?

We offer EXW, FOB, CFR, CIF, and DDU. Delivery typically takes 7-20 days after receiving the advance payment, depending on order volume.

● Do you provide OEM and ODM services?

Yes, we provide free OEM services and ODM services are available for bulk volume orders.

● How do you ensure product quality?

All products undergo strict testing and an aging process of more than 6-8 hours before dispatch to ensure reliability.

● What safety protections are included?

The system includes high-low voltage protection, overload, short-circuit, under-voltage, and over-temperature protections.
