Product Description

📋 Basic Specification
Model
SUN-60/70/75/80K-SG02HP3-EU-EM6
Phase
Three Phase
Output Power
60-80kw
Brand
Deye
Battery Type
Li-Ion
MPPT Range
160-1000V
Protection
IP65
Weight
105kg

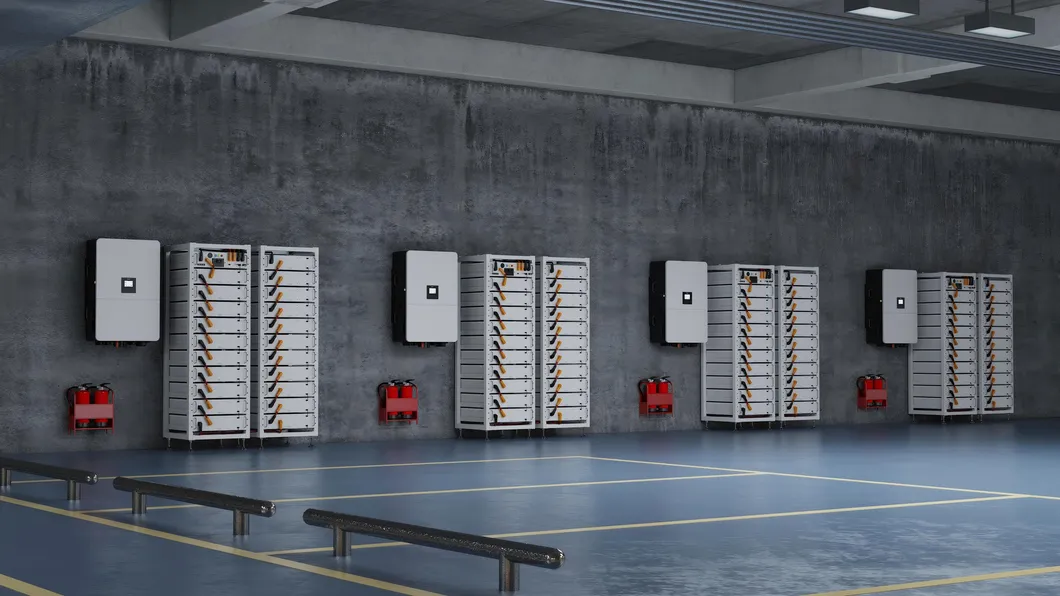

Commercial Hybrid Inverter
🔍 Product Overview
Technical Specs Details
Model Features SUN-60K SUN-70K SUN-75K SUN-80K
Max PV Input Power 96000W 112000W 120000W 128000W
Max PV Input Voltage 1000V
Start-up Voltage 180V
MPPT Voltage Range 150V-850V
Rated AC Output Power 60000W 70000W 75000W 80000W
Max. Efficiency 98.70%
Battery Voltage Range 160~1000V

🌐 Basic System Architecture

This hybrid inverter is designed for a complete power running system, which includes:

  • PV modules (Solar panels)
  • Generator or Utility Grid
  • Energy Storage Batteries (Li-ion)
  • Home or Commercial Appliances (Air conditioners, refrigerators, motors)

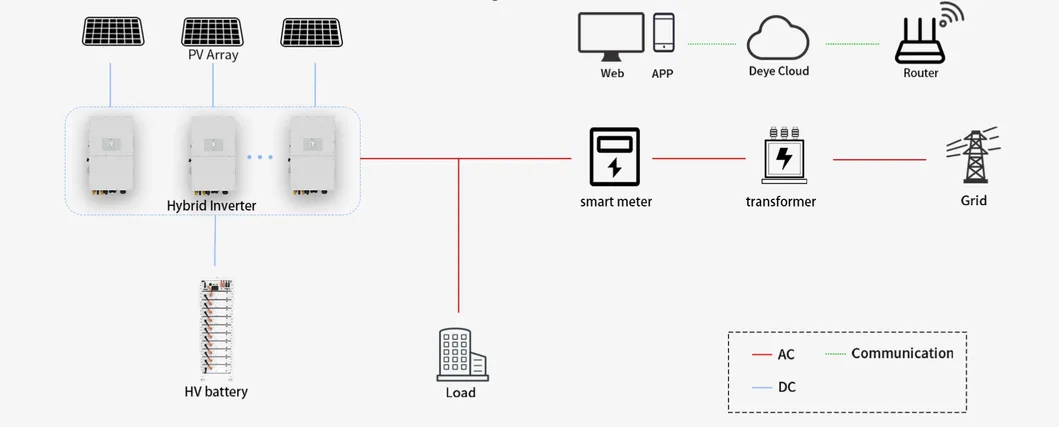

System Architecture Diagram

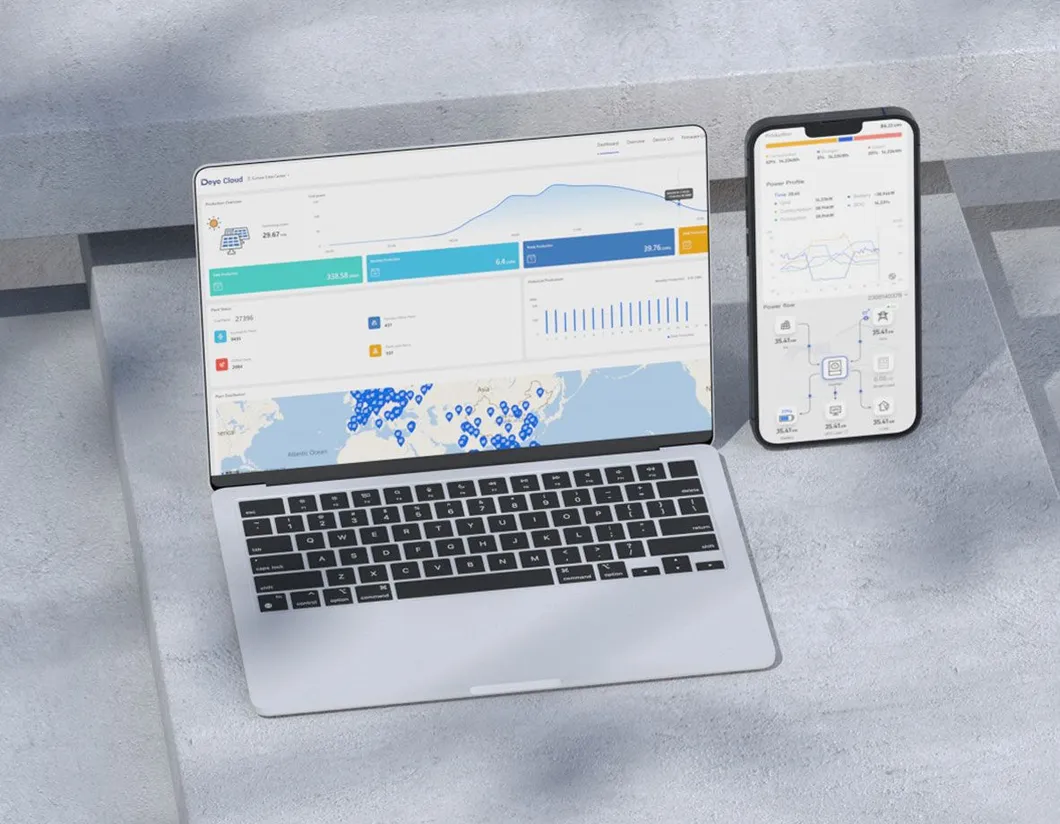

📱 Smart Monitoring Solution
Monitoring App

Deye Cloud Monitoring: Stay connected to your PV system's performance anytime, anywhere via your smartphone or PC. Using a smart Wi-Fi plug, the system communicates with your router to provide real-time data on:

  • Daily, Monthly, and Yearly energy production
  • Total energy lifecycle statistics
  • Remote system health checks
  • Optimization of energy output vs. costs

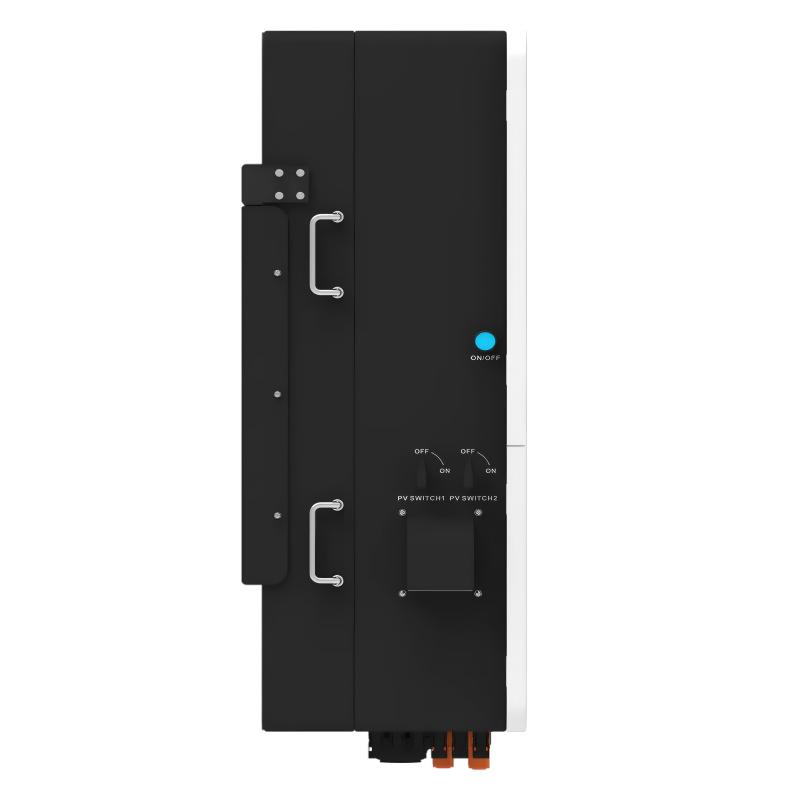

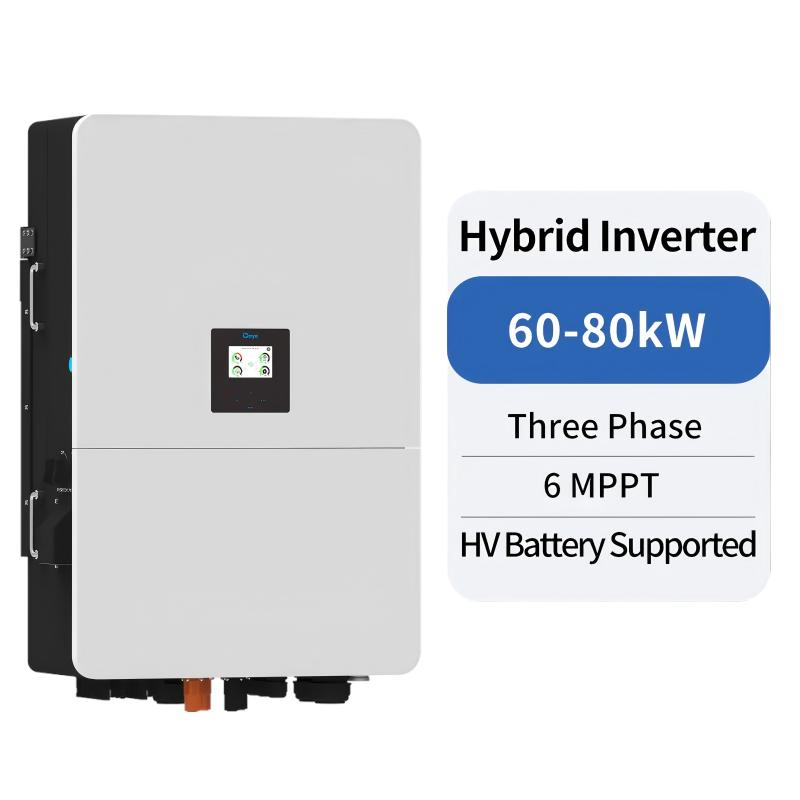

Product View 1 Product View 2
Interior Components Installation Setup
🛡️ Integrated Protection
✓ DC Reverse Polarity Protection
✓ AC Output Overcurrent Protection
✓ Anti-islanding Protection
✓ Thermal Protection
✓ Arc Fault Circuit Interrupter (Optional)
✓ Insulation Impedance Detection
Packaging Info
❓ Frequently Asked Questions
Q1: What type of batteries is this hybrid inverter compatible with?
The inverter is specifically designed for high-voltage Lithium-ion batteries, with a voltage range of 160V to 1000V.
Q2: Can it handle heavy appliances like air conditioners?
Yes, the 60-80kw series can power all types of home and office appliances, including motor-type loads like refrigerators and air conditioners.
Q3: What is the maximum efficiency of the system?
The system reaches a maximum efficiency of 98.70%, with an MPPT efficiency of over 99%.
Q4: Is the inverter suitable for outdoor installation?
Yes, it features an IP65 protection degree, making it resistant to dust and water, suitable for various environmental conditions.
Q5: How can I monitor my power usage?
Monitoring can be done via Wi-Fi, GPRS, Bluetooth, or LAN using the Deye Cloud platform on your smartphone or PC.
Q6: What is the peak power capacity during off-grid operation?
The inverter can handle up to 1.5 times the rated power for 10 seconds during off-grid peak demands.
