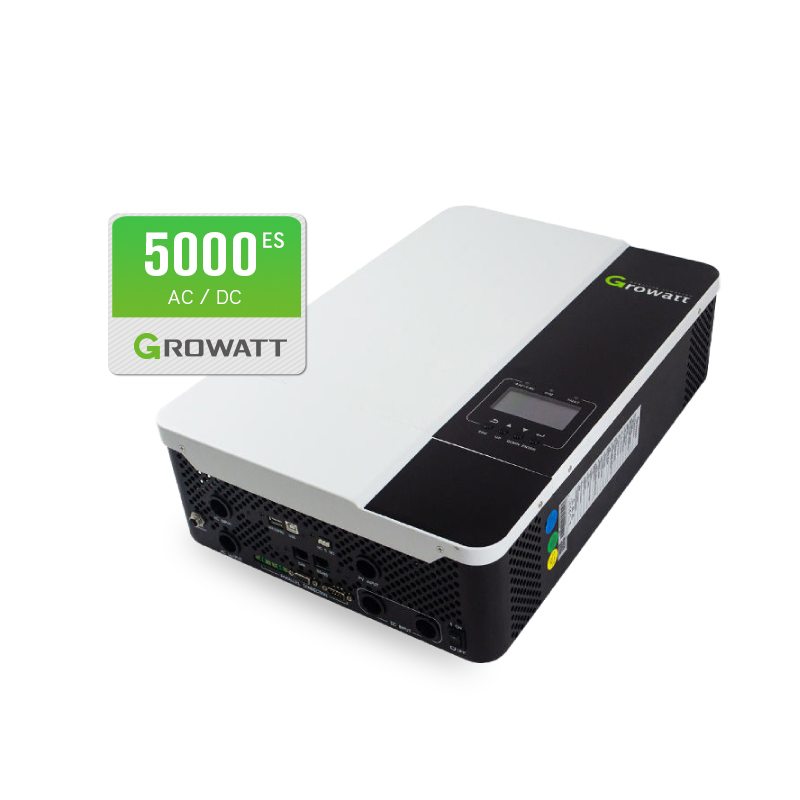

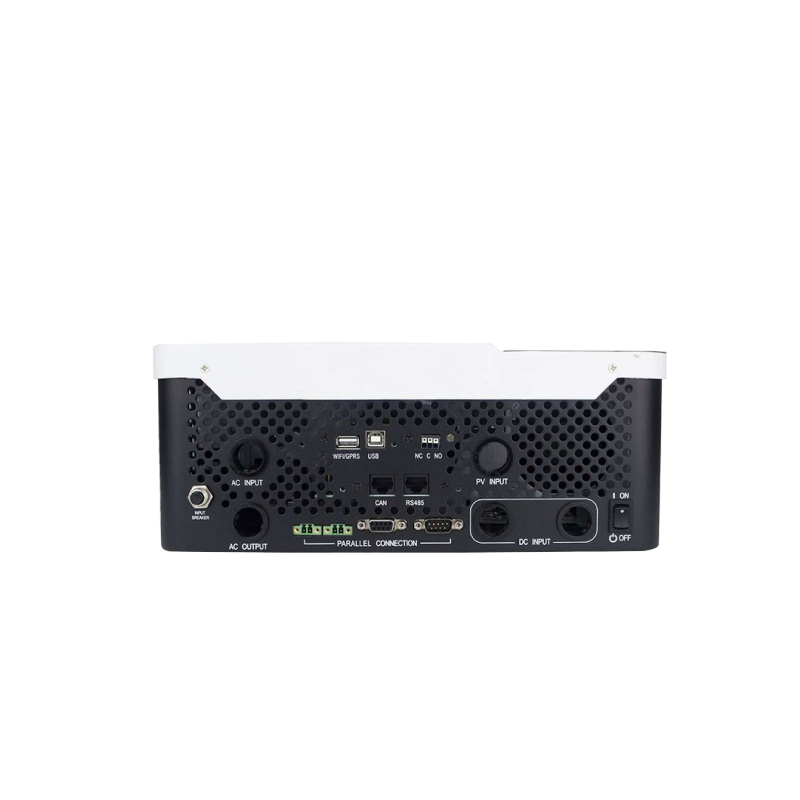

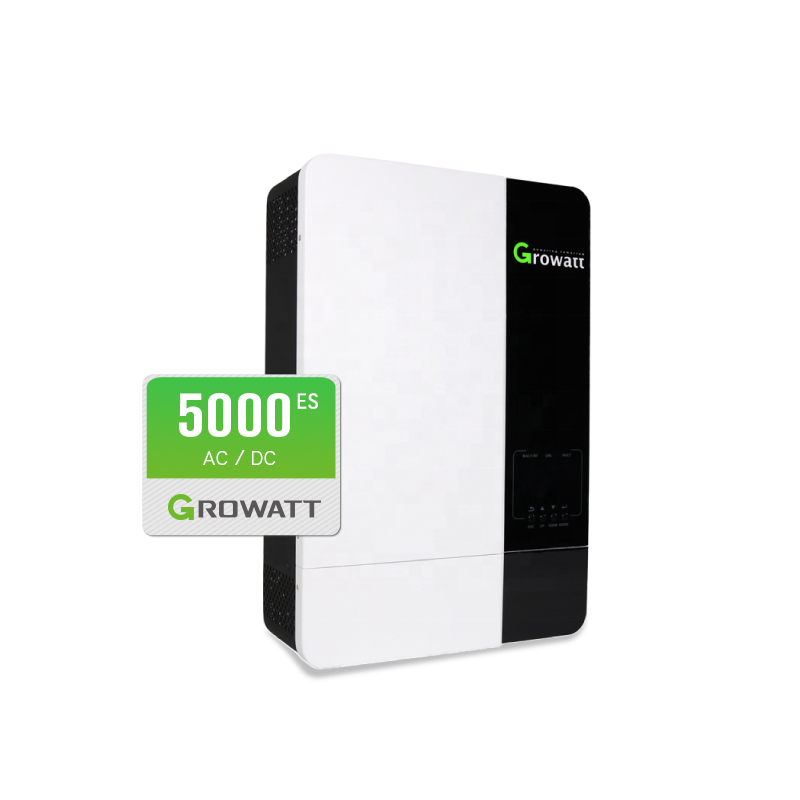

Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
1 / 5
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt
Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt

Growatt Best Quality Single Phase DC AC 48V 220V MPPT High Power off Grid Inverter 5000W 5kw Hybrid Solar Energy Inverter Growatt

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

📋 Overview & Basic Info
Model NO.
SPF 3500-5000 ES
Nature of Source
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001, TUV
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Wave String
Sine Wave Inverter
Protection Degree
IP20
AC Input Voltage
230 VAC
Efficiency
93%
Battery Voltage
48VDC
HS Code
8504403090
🚀 Product Description

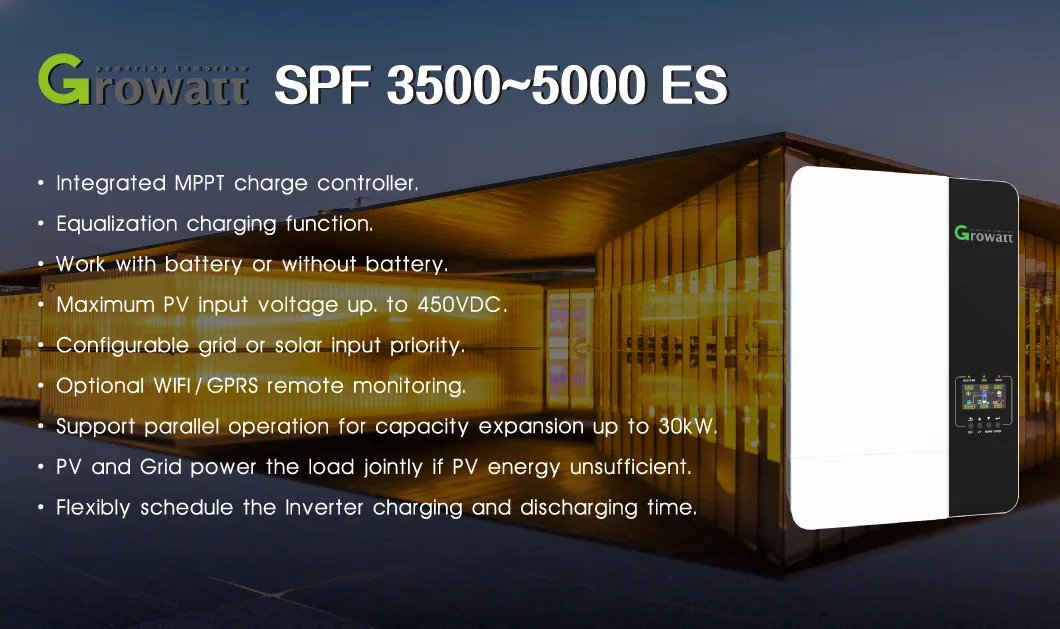

Inverter Description

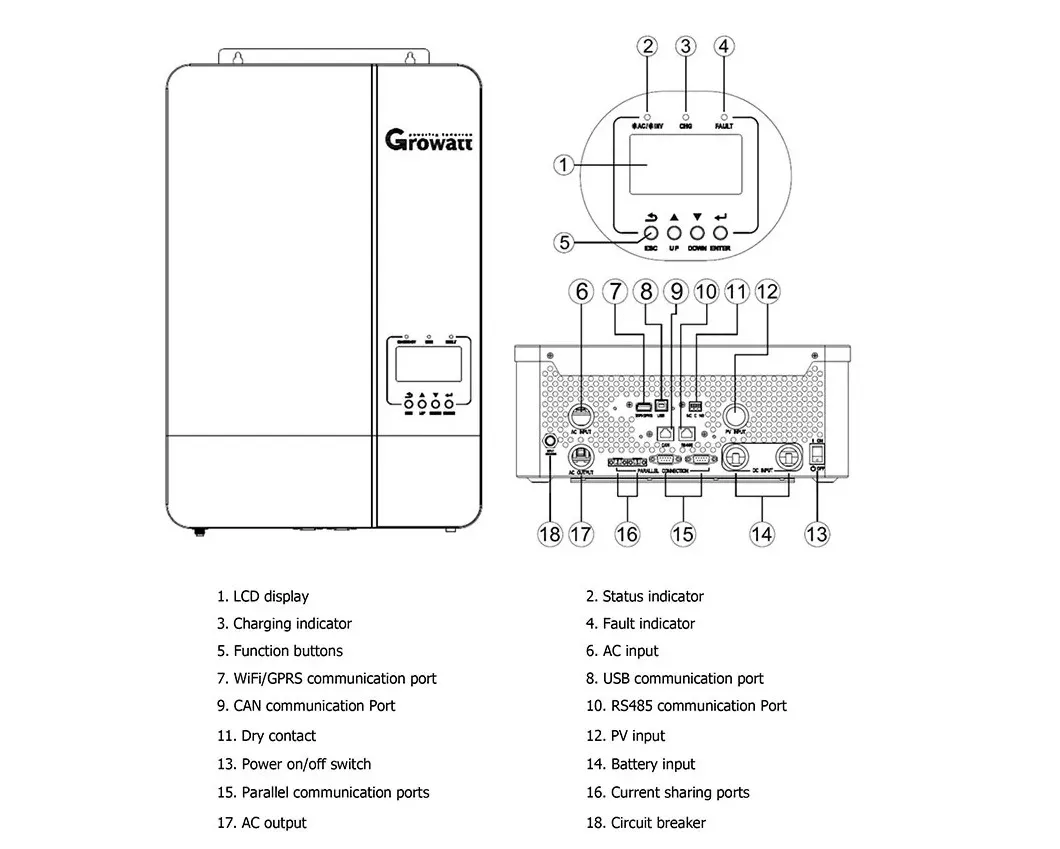

Inverter Features
📊 Product Parameters
Output data (AC) SPF 3500 ES SPF 5000 ES
Battery Voltage48VDC
Battery TypeLithium/Lead-acid
Rated Power3500VA/ 3500W5000VA/ 5000W
Parallel CapabilityYes, 6 units maximum
AC Voltage Regulation230VAC ± 5% @ 50/60Hz
Surge Power7000VA10000VA
Efficiency (Peak)93%
WaveformPure sine wave
Maximum PV Array Power4500W6000W
MPPT Operating Range120VDC ~ 430VDC
Maximum PV Voltage450VDC
Max Solar Charge Current80A100A
Dimension (W/H/D)330/485/135mm330/485/135mm
Operating Temperature0°C - 55°C
📜 Authorization Certificate
Certificate

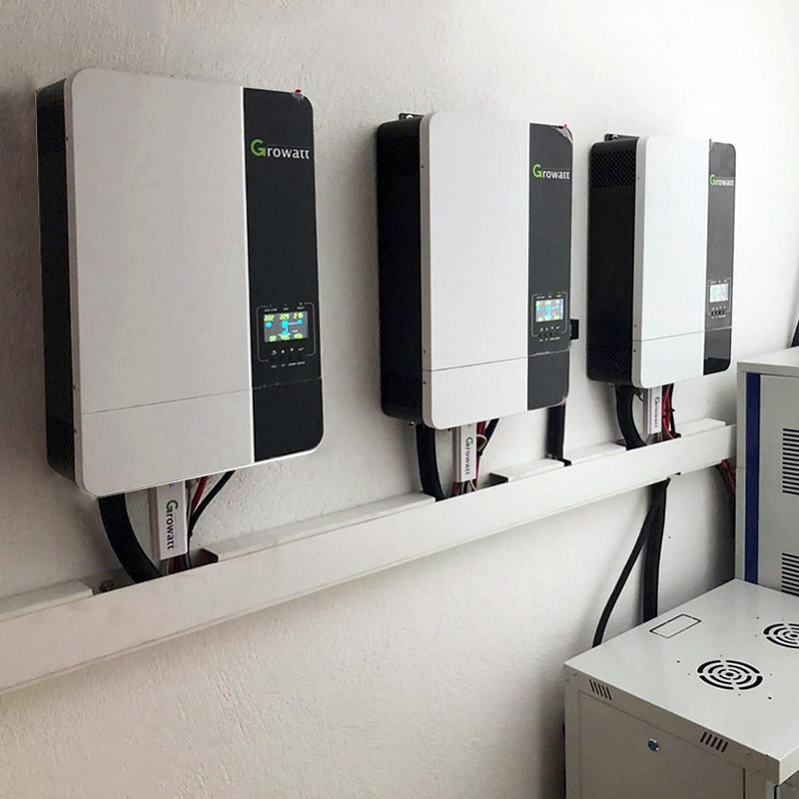

🏠 Project Case

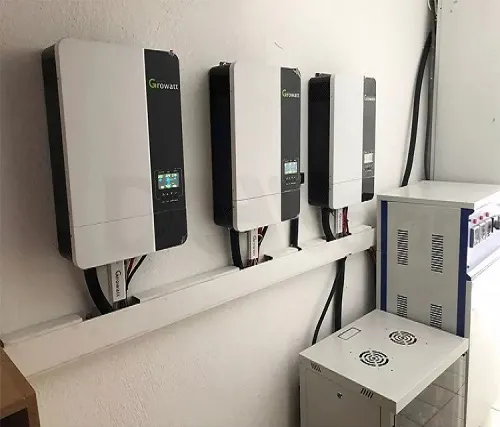

Project Case 1

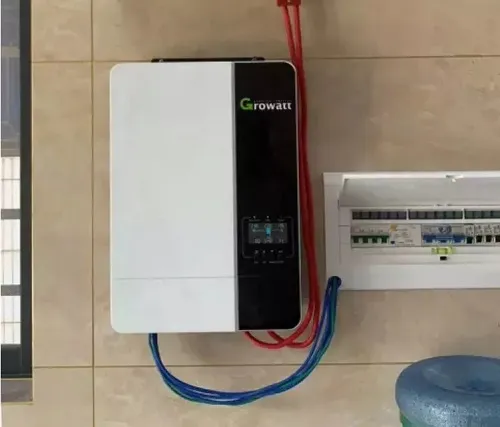

Project Case 2

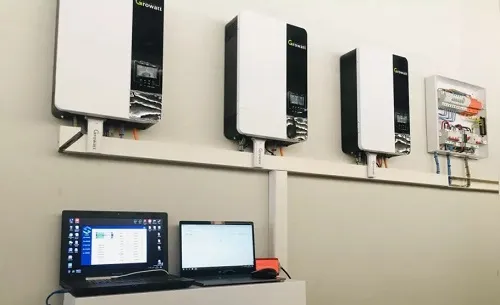

Project Case 3

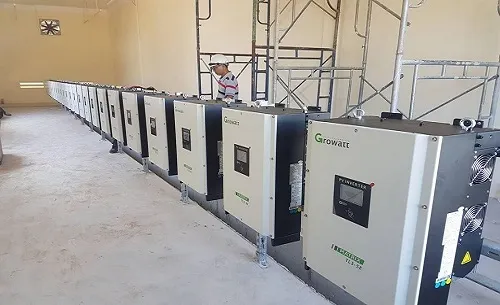

Project Case 4
📦 Packaging & Shipping
Packaging
Shipping
❓ Frequently Asked Questions
Can this inverter be used in parallel?
Yes, the SPF series supports parallel capability with up to 6 units working together to increase system capacity.
What types of batteries are compatible?
This hybrid inverter is compatible with both Lithium and Lead-acid battery systems with a 48VDC voltage rating.
What is the peak efficiency of this inverter?
The inverter achieves a high peak efficiency of 93%, ensuring minimal energy loss during the DC to AC conversion process.
Does it support high voltage solar arrays?
Yes, the MPPT controller supports a maximum PV array voltage of up to 450VDC, with an operating range between 120VDC and 430VDC.
Can it operate in extreme temperatures?
The device is designed to operate efficiently within a temperature range of 0°C to 55°C, making it suitable for most residential and commercial environments.
What is the surge power capacity?
The SPF 3500 ES supports up to 7000VA surge power, while the SPF 5000 ES supports up to 10000VA for handling high starting currents from motors or compressors.

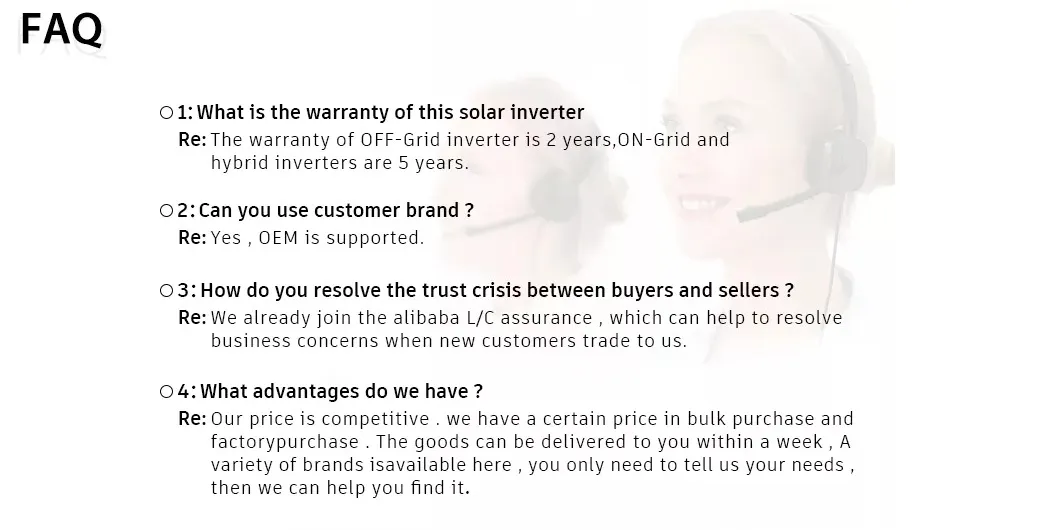

FAQ Overview
